RA410

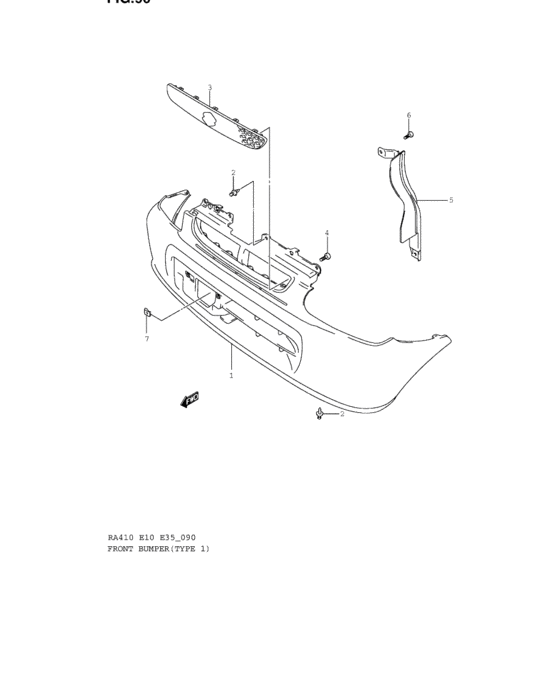

Front bumper (TYPE 1) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 71711-76G00-W07 | BUMPER,FR(BLACK) |
| 1 | 71711-76G00-799 | BUMPER,FR(PRIMARY) |
| 2 | 09409-08327-000 | CLIP |
| 3 | 71741-76G00-5PK | NET,FR BUMPER |
| 4 | 03541-04123-000 | Screw |
| 4 | 03541-0412B-000 | SCREW - Screw, plate |
| 4 | 03541-0412A-000 | SCREW - Screw, speedometer |
| 5 | 71722-76G00-000 | EXTENSION,FR BUMPER SIDE |
| 6 | 03541-05123-000 | Screw |
| 6 | 03541-0512B-000 | SCREW |
| 7 | 71812-82010-000 | Nut - Nut, air cleaner |
| 7 | 09148-06021-000 | NUT - Nut, air cleaner |
| OEM | Part name | Category |
|---|---|---|
| 03541-04123-000 | Screw | Front bumper (TYPE 1) |
| 03541-0412A-000 | SCREW - Screw, speedometer | Front bumper (TYPE 1) |
| 03541-0412B-000 | SCREW - Screw, plate | Front bumper (TYPE 1) |
| 03541-05123-000 | Screw | Front bumper (TYPE 1) |
| 03541-0512B-000 | SCREW | Front bumper (TYPE 1) |
| 09148-06021-000 | NUT - Nut, air cleaner | Front bumper (TYPE 1) |
| 09409-08327-000 | CLIP | Front bumper (TYPE 1) |
| 71711-76G00-799 | BUMPER,FR(PRIMARY) | Front bumper (TYPE 1) |
| 71711-76G00-W07 | BUMPER,FR(BLACK) | Front bumper (TYPE 1) |
| 71722-76G00-000 | EXTENSION,FR BUMPER SIDE | Front bumper (TYPE 1) |
| 71741-76G00-5PK | NET,FR BUMPER | Front bumper (TYPE 1) |
| 71812-82010-000 | Nut - Nut, air cleaner | Front bumper (TYPE 1) |
