Search › Model › RA410
RA410

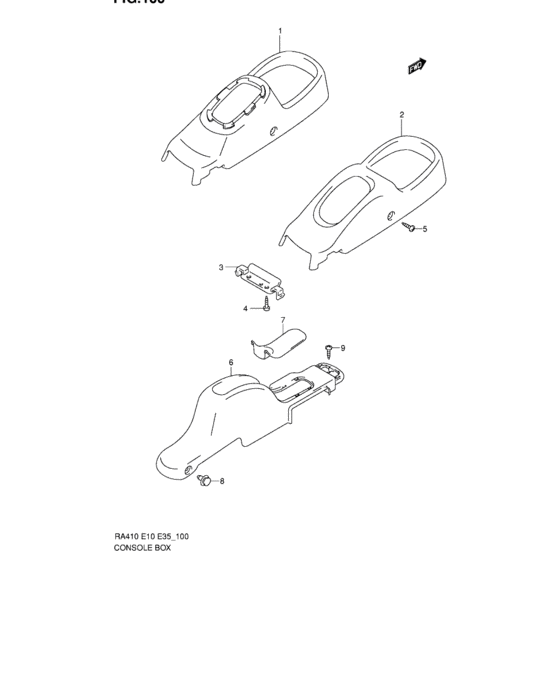

Console box (CONSOLE BOX) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 75811-76G20-T01 | BOX,FLOOR CONSOLE FR |
| 1 | 75811-76G20-P4Z | BOX,FLOOR CONSOLE FR |
| 2 | 75811-76G30-T01 | BOX,FLOOR CONSOLE FR |
| 2 | 75811-76G30-P4Z | BOX,FLOOR CONSOLE FR |
| 3 | 75823-76G00-000 | CLIP,CONSOLE BOX FR |
| 4 | 03541-05163-000 | Screw |
| 4 | 03541-0516A-000 | SCREW |
| 5 | 03142-05123-000 | Screw - Screw, belt cooling duct |
| 5 | 03141-0512A-000 | SCREW - Screw, belt cooling duct |
| 6 | 75871-76G10-T01 | BOX,FLOOR CONSOLE RR |
| 6 | 75871-76G10-P4Z | BOX,FLOOR CONSOLE RR |
| 7 | 75872-76G10-T01 | COVER,PARKING BRAKE LEVER HOLE |
| 7 | 75872-76G10-P4Z | COVER,PARKING BRAKE LEVER HOLE |
| 8 | 09409-06322-T01 | CLIP(GRAY) |
| 8 | 09409-06322-P4Z | CLIP(GRAY) |
| OEM | Part name | Category |
|---|---|---|
| 03141-0512A-000 | SCREW - Screw, belt cooling duct | Console box (CONSOLE BOX) |
| 03142-05123-000 | Screw - Screw, belt cooling duct | Console box (CONSOLE BOX) |
| 03541-05163-000 | Screw | Console box (CONSOLE BOX) |
| 03541-0516A-000 | SCREW | Console box (CONSOLE BOX) |
| 09409-06322-P4Z | CLIP(GRAY) | Console box (CONSOLE BOX) |
| 09409-06322-T01 | CLIP(GRAY) | Console box (CONSOLE BOX) |
| 75811-76G20-P4Z | BOX,FLOOR CONSOLE FR | Console box (CONSOLE BOX) |
| 75811-76G20-T01 | BOX,FLOOR CONSOLE FR | Console box (CONSOLE BOX) |
| 75811-76G30-P4Z | BOX,FLOOR CONSOLE FR | Console box (CONSOLE BOX) |
| 75811-76G30-T01 | BOX,FLOOR CONSOLE FR | Console box (CONSOLE BOX) |
| 75823-76G00-000 | CLIP,CONSOLE BOX FR | Console box (CONSOLE BOX) |
| 75871-76G10-P4Z | BOX,FLOOR CONSOLE RR | Console box (CONSOLE BOX) |
| 75871-76G10-T01 | BOX,FLOOR CONSOLE RR | Console box (CONSOLE BOX) |
| 75872-76G10-P4Z | COVER,PARKING BRAKE LEVER HOLE | Console box (CONSOLE BOX) |
| 75872-76G10-T01 | COVER,PARKING BRAKE LEVER HOLE | Console box (CONSOLE BOX) |
