Search › Model › RA410
RA410

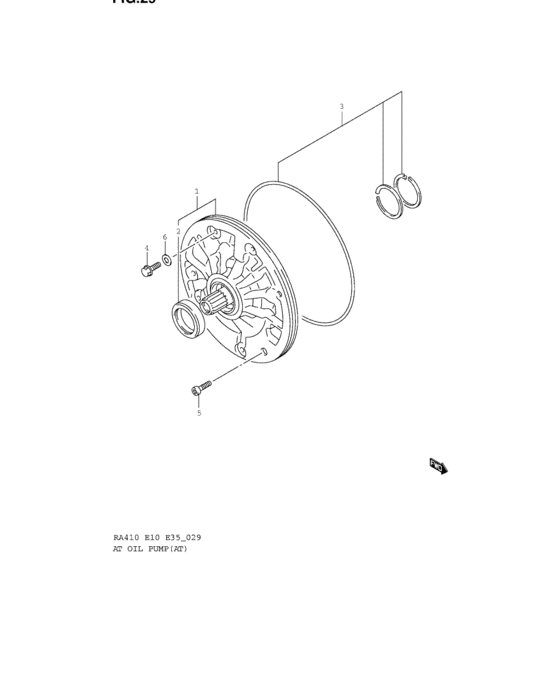

At oil pump (AT) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 22800-76G11-000 | ポンプアッシ,オイル |
| 1 | 22800-76G17-000 | PUMP ASSY,OIL |
| 2 | 29282-73H10-000 | SEAL,INPUT SHAFT OIL |
| 3 | 22860-71BT6-000 | RING SET,OIL PUMP SEAL |
| 4 | 22863-78G30-000 | BOLT,OIL PUMP |
| 5 | 07130-06203-000 | Bolt |
| 5 | 07130-0620B-000 | Bolt - Bolt, front brg housing |
| 6 | 09168-06018-000 | GASKET(6.2X13X1.2) - Gasket, oil check bolt |
| OEM | Part name | Category |
|---|---|---|
| 07130-06203-000 | Bolt | At oil pump (AT) |
| 07130-0620B-000 | Bolt - Bolt, front brg housing | At oil pump (AT) |
| 09168-06018-000 | GASKET(6.2X13X1.2) - Gasket, oil check bolt | At oil pump (AT) |
| 22800-76G11-000 | ポンプアッシ,オイル | At oil pump (AT) |
| 22800-76G17-000 | PUMP ASSY,OIL | At oil pump (AT) |
| 22860-71BT6-000 | RING SET,OIL PUMP SEAL | At oil pump (AT) |
| 22863-78G30-000 | BOLT,OIL PUMP | At oil pump (AT) |
| 29282-73H10-000 | SEAL,INPUT SHAFT OIL | At oil pump (AT) |
