RA410

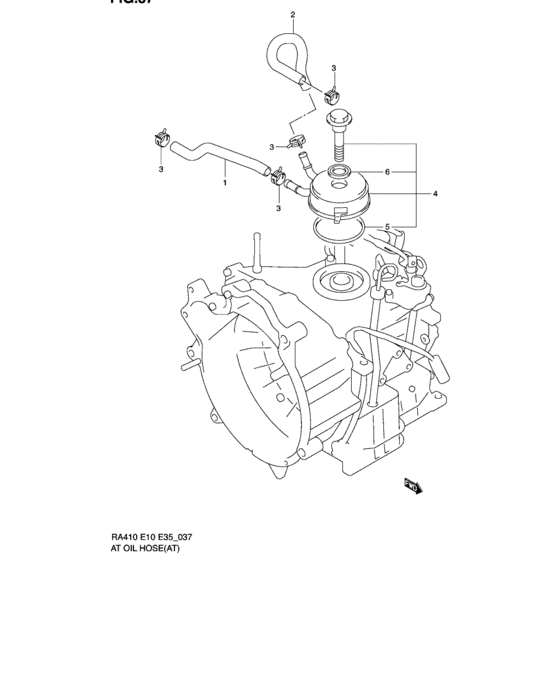

At oil hose (AT) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 24891-75H30-000 | HOSE,OIL COOLER NO.1 |
| 1 | 24891-76G11-000 | HOSE,OIL COOLER NO.1 |
| 2 | 24892-76G31-000 | HOSE,OIL COOLER NO.2 |
| 3 | 09401-18403-000 | CLIP - Clip, heater hose |
| 4 | 24921-76G30-000 | クーラアッシ,AT |
| 4 | 24921-76G32-000 | COOLER ASSY,AT |
| 5 | 24924-76G10-000 | O-RING,OIL COOLER |
| 6 | 24925-76G10-000 | WASHER,OIL COOLER |
| OEM | Part name | Category |
|---|---|---|
| 09401-18403-000 | CLIP - Clip, heater hose | At oil hose (AT) |
| 24891-75H30-000 | HOSE,OIL COOLER NO.1 | At oil hose (AT) |
| 24891-76G11-000 | HOSE,OIL COOLER NO.1 | At oil hose (AT) |
| 24892-76G31-000 | HOSE,OIL COOLER NO.2 | At oil hose (AT) |
| 24921-76G30-000 | クーラアッシ,AT | At oil hose (AT) |
| 24921-76G32-000 | COOLER ASSY,AT | At oil hose (AT) |
| 24924-76G10-000 | O-RING,OIL COOLER | At oil hose (AT) |
| 24925-76G10-000 | WASHER,OIL COOLER | At oil hose (AT) |
