| 01551-08163-000 |
Bolt |

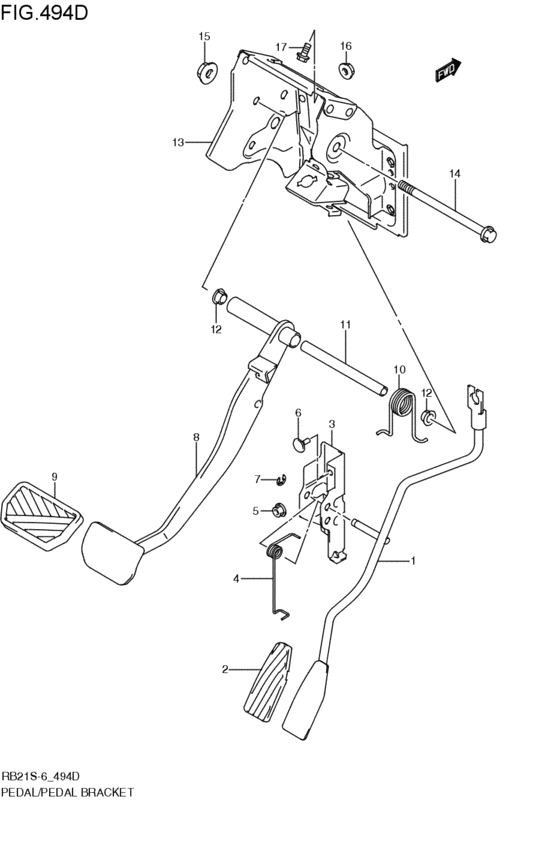

pedal / pedal bracket (2005-12-01~2007-05-01) |
| 01551-0816A-000 |
ボルト |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 01551-0816C-000 |
Bolt |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 08316-10103-000 |
Nut |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 08316-1010B-000 |
NUT |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 08332-11073-000 |
E ring |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 08332-1107A-000 |
E RING |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 09103-10123-000 |
BOLT(10X165) |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 09159-08069-000 |
Nut |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 09159-08135-000 |
NUT |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 09180-10134-000 |
SPACER(10X13X148.2) |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 09307-13005-000 |
BUSH - Bushing |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 09321-06026-000 |
CUSHION |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 49410-54G01-000 |
PEDAL,ACCELERATOR |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 49451-60B00-000 |
PAD,ACCELERATOR PEDAL |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 49491-54G00-000 |
SPRING,ACCELERATOR PEDAL |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 49511-54G00-000 |
BRACKET,ACCELERATOR PEDAL |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 49610-55G10-000 |
PEDAL,BRAKE |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 49691-54G00-000 |
SPRING,BRAKE PEDAL RETURN |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 49710-55G00-000 |
BRACKET,PEDAL |
pedal / pedal bracket (2005-12-01~2007-05-01) |
| 49751-58J10-000 |
PAD,PEDAL |
pedal / pedal bracket (2005-12-01~2007-05-01) |
