| 02162-0610A-000 |
SCREW |

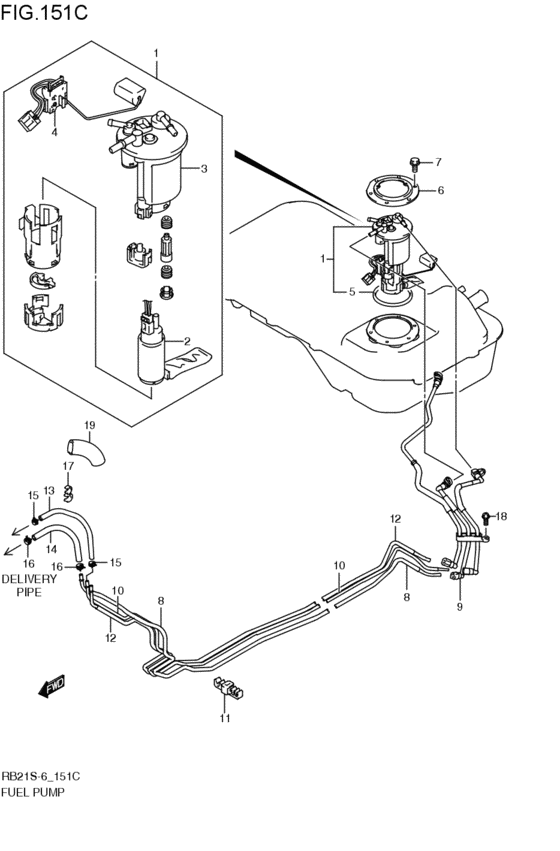

Fuel Pump (2005-12-01~2007-05-01) |
| 02162-0616A-000 |
SCREW |
Fuel Pump (2005-12-01~2007-05-01) |
| 02162-0616B-000 |
SCREW - Bolt, adjust |
Fuel Pump (2005-12-01~2007-05-01) |
| 09356-55117-600 |
HOSE(5.5X11.5X600) - Hose, fuel rtn (body side) |
Fuel Pump (2005-12-01~2007-05-01) |
| 09356-75147-600 |
HOSE(7.5X14.3X600) - Hose, fuel (body side) |
Fuel Pump (2005-12-01~2007-05-01) |
| 09401-10409-000 |
CLIP |
Fuel Pump (2005-12-01~2007-05-01) |
| 09401-13419-000 |
CLIP |
Fuel Pump (2005-12-01~2007-05-01) |
| 09408-00121-000 |
CLAMP |
Fuel Pump (2005-12-01~2007-05-01) |
| 15100-54840-000 |
PUMP SET,FUEL |
Fuel Pump (2005-12-01~2007-05-01) |
| 15110-54G10-000 |
PUMP ASSY,FUEL |
Fuel Pump (2005-12-01~2007-05-01) |
| 15111-50G01-000 |
GASKET,FUEL PUMP |
Fuel Pump (2005-12-01~2007-05-01) |
| 15121-50G00-000 |
PLATE,FUEL PUMP |
Fuel Pump (2005-12-01~2007-05-01) |
| 15310-54G10-000 |
FILTER |
Fuel Pump (2005-12-01~2007-05-01) |
| 15811-54G00-000 |
PIPE,FUEL FEED |
Fuel Pump (2005-12-01~2007-05-01) |
| 15816-54G00-000 |
PROTECTOR,FUEL HOSE |
Fuel Pump (2005-12-01~2007-05-01) |
| 15820-54G10-000 |
PIPE,FUEL TANK SIDE |
Fuel Pump (2005-12-01~2007-05-01) |
| 15861-54G00-000 |
PIPE,FUEL RTN |
Fuel Pump (2005-12-01~2007-05-01) |
| 15882-54G00-000 |
CLAMP,FUEL PIPE |
Fuel Pump (2005-12-01~2007-05-01) |
| 18351-54G00-000 |
PIPE,PURGE |
Fuel Pump (2005-12-01~2007-05-01) |
| 34810-54G00-000 |
GAUGE ASSY,FUEL LEVEL |
Fuel Pump (2005-12-01~2007-05-01) |
