Search › Model › R50
R50

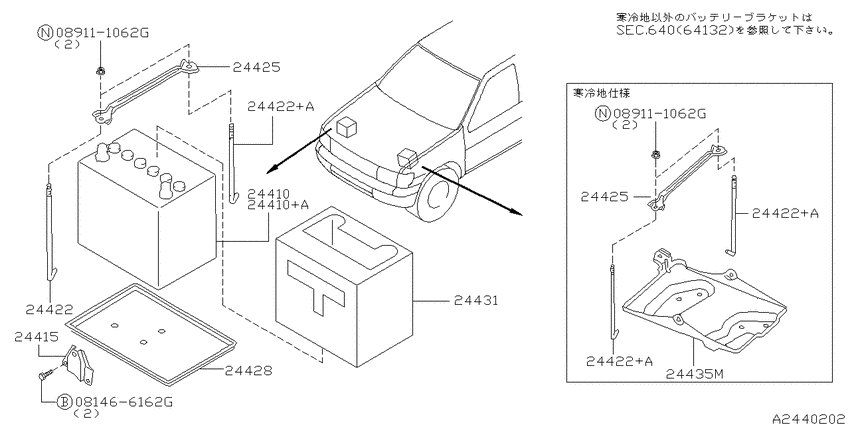

Battery & battery mounting (1999-02-01 ~ 2001-10-01; VG33E +ZD30DDTI) 6
| # | OEM | Part name |
|---|---|---|
| 24415 | 64866-1W500 | Bracket-Battery |
| 24422 | 24425-89906 | Rod-Battery Fix |
| 24428 | 24428-60L00 | Tray-Battery |
| 24428 | 24428-80W00 | Tray-Battery |
| 24431 | 24431-0W710 | Cover-Battery |
| 24435 | 64163-2W200 | Bracket-Battery Support |
| OEM | Part name | Category |
|---|---|---|
| 24425-89906 | Rod-Battery Fix | Battery & battery mounting (1999-02-01 ~ 2001-10-01; VG33E +ZD30DDTI) |
| 24428-60L00 | Tray-Battery | Battery & battery mounting (1999-02-01 ~ 2001-10-01; VG33E +ZD30DDTI) |
| 24428-80W00 | Tray-Battery | Battery & battery mounting (1999-02-01 ~ 2001-10-01; VG33E +ZD30DDTI) |
| 24431-0W710 | Cover-Battery | Battery & battery mounting (1999-02-01 ~ 2001-10-01; VG33E +ZD30DDTI) |
| 64163-2W200 | Bracket-Battery Support | Battery & battery mounting (1999-02-01 ~ 2001-10-01; VG33E +ZD30DDTI) |
| 64866-1W500 | Bracket-Battery | Battery & battery mounting (1999-02-01 ~ 2001-10-01; VG33E +ZD30DDTI) |
