R35

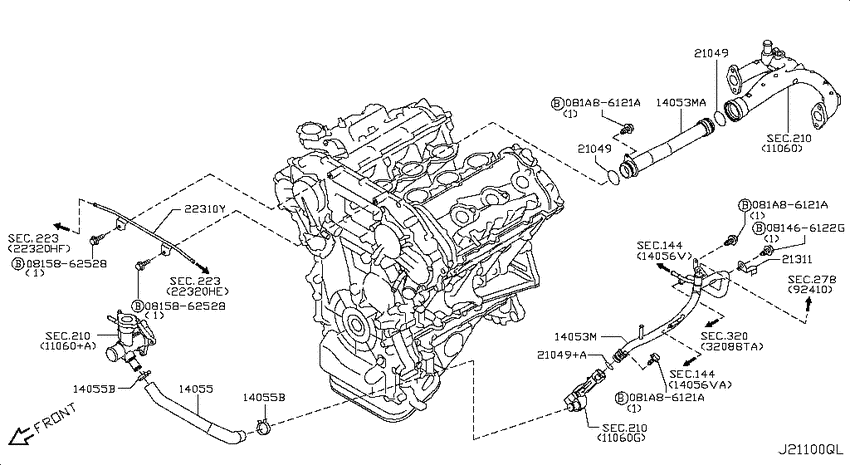

Water hose & piping (2008-12-01 ~ ; VR38DETT) 8
| # | OEM | Part name |
|---|---|---|
| 14053 | 21022-JF00A | Pipe-Water |
| 14053 | 21022-JF00B | Pipe-Water |
| 14053 | 21022-JF00C | Pipe-Water |
| 14053 | 21021-JF00A | Pipe-Water |
| 14053 | 21021-JF02A | Pipe-Water |
| 14055 | 14055-JF00A | Hose-Water |
| 21311 | 21311-JF02A | Bracket-Pipe |
| 22310 | 22310-JF00A | Gallery Assy-Vacuum |
| OEM | Part name | Category |
|---|---|---|
| 14055-JF00A | Hose-Water | Water hose & piping (2008-12-01 ~ ; VR38DETT) |
| 21021-JF00A | Pipe-Water | Water hose & piping (2008-12-01 ~ ; VR38DETT) |
| 21021-JF02A | Pipe-Water | Water hose & piping (2008-12-01 ~ ; VR38DETT) |
| 21022-JF00A | Pipe-Water | Water hose & piping (2008-12-01 ~ ; VR38DETT) |
| 21022-JF00B | Pipe-Water | Water hose & piping (2008-12-01 ~ ; VR38DETT) |
| 21022-JF00C | Pipe-Water | Water hose & piping (2008-12-01 ~ ; VR38DETT) |
| 21311-JF02A | Bracket-Pipe | Water hose & piping (2008-12-01 ~ ; VR38DETT) |
| 22310-JF00A | Gallery Assy-Vacuum | Water hose & piping (2008-12-01 ~ ; VR38DETT) |
