R35

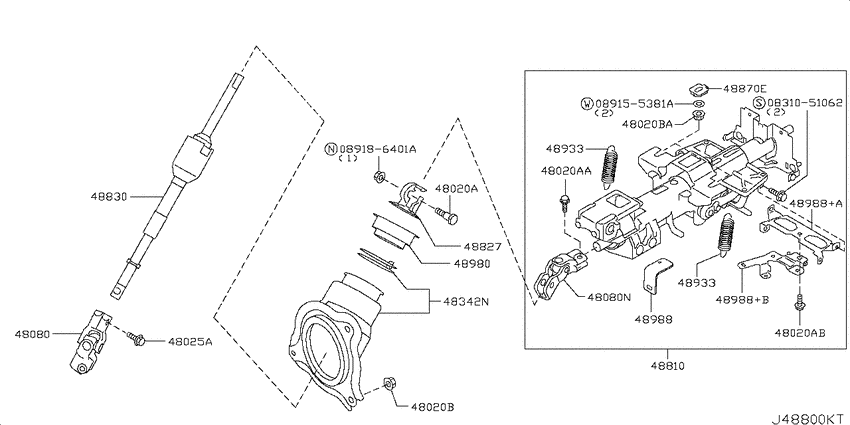

Steering column (2007-11-01 ~ ; VR38DETT) 12
| # | OEM | Part name |
|---|---|---|
| 48020 | 48935-JF00B | Bolt |
| 48080 | 48080-EG000 | Joint Assy-Steering, Lower |
| 48080 | 48070-JF01A | Joint Assy-Steering Column, Upper |
| 48342 | 48950-JF00A | Cover-Column Hole |
| 48830 | 48822-JF00A | Shaft Assy-Steering Column, Lower |
| 48870 | 48964-JF00A | Plate-Slide |
| 48933 | 48933-JF00A | Spring-Steering Column |
| 48980 | 48980-AL500 | Cover Assy-Steering Column, Lower |
| 48988 | 48988-JF00A | Bracket |
| 48988 | 48988-JF00B | Bracket |
| 48988 | 48988-JF00C | Bracket |
| 831051062 | 08310-51062 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08310-51062 | スクリユ-,マシン | Steering column (2007-11-01 ~ ; VR38DETT) |
| 48070-JF01A | Joint Assy-Steering Column, Upper | Steering column (2007-11-01 ~ ; VR38DETT) |
| 48080-EG000 | Joint Assy-Steering, Lower | Steering column (2007-11-01 ~ ; VR38DETT) |
| 48822-JF00A | Shaft Assy-Steering Column, Lower | Steering column (2007-11-01 ~ ; VR38DETT) |
| 48933-JF00A | Spring-Steering Column | Steering column (2007-11-01 ~ ; VR38DETT) |
| 48935-JF00B | Bolt | Steering column (2007-11-01 ~ ; VR38DETT) |
| 48950-JF00A | Cover-Column Hole | Steering column (2007-11-01 ~ ; VR38DETT) |
| 48964-JF00A | Plate-Slide | Steering column (2007-11-01 ~ ; VR38DETT) |
| 48980-AL500 | Cover Assy-Steering Column, Lower | Steering column (2007-11-01 ~ ; VR38DETT) |
| 48988-JF00A | Bracket | Steering column (2007-11-01 ~ ; VR38DETT) |
| 48988-JF00B | Bracket | Steering column (2007-11-01 ~ ; VR38DETT) |
| 48988-JF00C | Bracket | Steering column (2007-11-01 ~ ; VR38DETT) |
