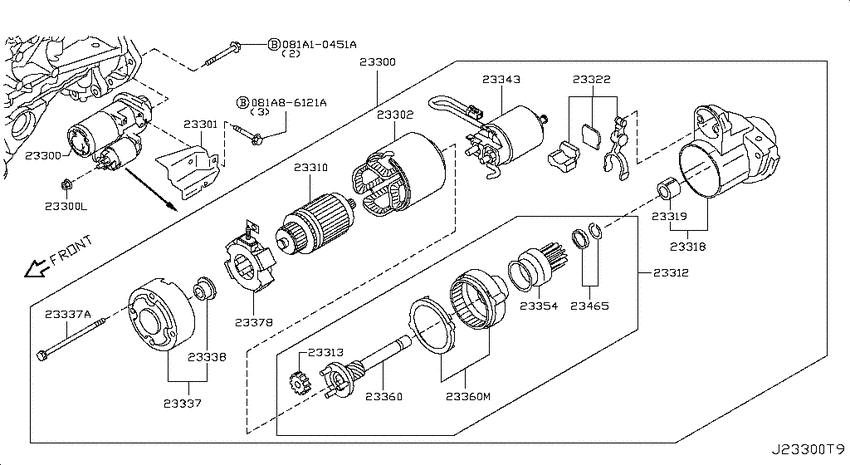

| 23300-JF00B |
Motor Assy-Starter |
Starter motor (2008-03-01 ~ ; VR38DETT) |
| 23301-JF00A |
Cover-Starter Motor |
Starter motor (2008-03-01 ~ ; VR38DETT) |
| 23301-JF00B |
Cover-Starter Motor |
Starter motor (2008-03-01 ~ ; VR38DETT) |
| 23302-JF00B |
Yoke Assy |
Starter motor (2008-03-01 ~ ; VR38DETT) |
| 23310-8Y000 |
Armature Assy |
Starter motor (2008-03-01 ~ ; VR38DETT) |
| 23312-JF00B |
Pinion Assy |
Starter motor (2008-03-01 ~ ; VR38DETT) |
| 23318-JF00B |
Case Assy-Gear |
Starter motor (2008-03-01 ~ ; VR38DETT) |
| 23319-8Y000 |
Metal-Gear Case |
Starter motor (2008-03-01 ~ ; VR38DETT) |
| 23322-ED000 |
Lever Set-Shift |
Starter motor (2008-03-01 ~ ; VR38DETT) |
| 23337-ET80A |
Cover Assy-Rear |
Starter motor (2008-03-01 ~ ; VR38DETT) |
| 23338-8Y000 |
Metal-Rear Cover |
Starter motor (2008-03-01 ~ ; VR38DETT) |
| 23340-JF00B |
Bolt-Through |
Starter motor (2008-03-01 ~ ; VR38DETT) |
| 23343-JF00B |
Switch Assy-Magnetic |
Starter motor (2008-03-01 ~ ; VR38DETT) |
| 23350-8Y000 |
Internal Gear Assy |
Starter motor (2008-03-01 ~ ; VR38DETT) |
| 23354-JF00B |
Clutch Assy |
Starter motor (2008-03-01 ~ ; VR38DETT) |
| 23360-JF00B |
Gear & Shaft Set |
Starter motor (2008-03-01 ~ ; VR38DETT) |
| 23361-42L70 |
Planet Gear |
Starter motor (2008-03-01 ~ ; VR38DETT) |
| 23378-ET80A |
Holder Assy-Brush |
Starter motor (2008-03-01 ~ ; VR38DETT) |
| 23465-42L70 |
Stopper Set-Pinion |
Starter motor (2008-03-01 ~ ; VR38DETT) |
