Search › Model › R35
R35

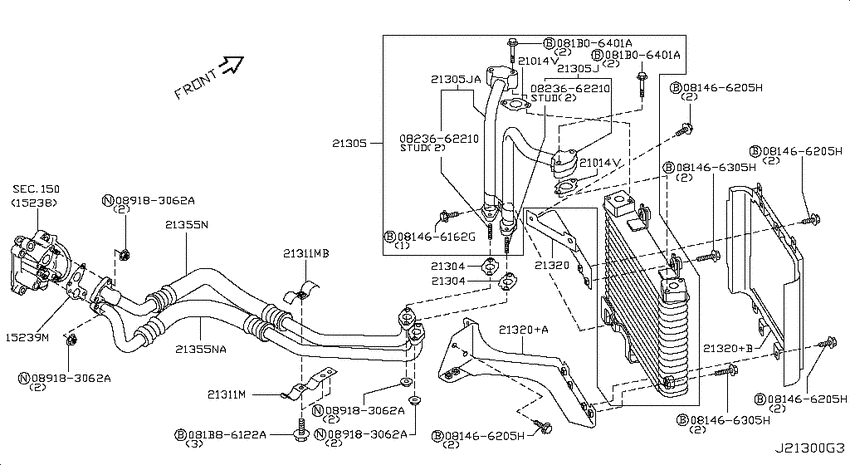

Oil cooler (2009-12-01 ~ ; VR38DETT) 10
| # | OEM | Part name |
|---|---|---|
| 21014 | 15066-JF00A | Ring-O |
| 21304 | 21304-JF00A | Ring-Rubber |
| 21304 | 21304-JF01A | Gasket-Oil Cooler |
| 21305 | 21305-JF02B | Cooler Assy-Oil |
| 21305 | 21355-JF00A | Element-Oil Cooler |
| 21305 | 21355-JF00B | Element-Oil Cooler |
| 21305 | 21355-JF01A | Element-Oil Cooler |
| 21305 | 21355-JF01B | Element-Oil Cooler |
| 81466305 | 08146-6305H | Bolt-hexagon |
| 823662210 | 08236-62210 | Stud-coarse |
| OEM | Part name | Category |
|---|---|---|
| 08146-6305H | Bolt-hexagon | Oil cooler (2009-12-01 ~ ; VR38DETT) |
| 08236-62210 | Stud-coarse | Oil cooler (2009-12-01 ~ ; VR38DETT) |
| 15066-JF00A | Ring-O | Oil cooler (2009-12-01 ~ ; VR38DETT) |
| 21304-JF00A | Ring-Rubber | Oil cooler (2009-12-01 ~ ; VR38DETT) |
| 21304-JF01A | Gasket-Oil Cooler | Oil cooler (2009-12-01 ~ ; VR38DETT) |
| 21305-JF02B | Cooler Assy-Oil | Oil cooler (2009-12-01 ~ ; VR38DETT) |
| 21355-JF00A | Element-Oil Cooler | Oil cooler (2009-12-01 ~ ; VR38DETT) |
| 21355-JF00B | Element-Oil Cooler | Oil cooler (2009-12-01 ~ ; VR38DETT) |
| 21355-JF01A | Element-Oil Cooler | Oil cooler (2009-12-01 ~ ; VR38DETT) |
| 21355-JF01B | Element-Oil Cooler | Oil cooler (2009-12-01 ~ ; VR38DETT) |
