| 01456-00461 |
SCREW |

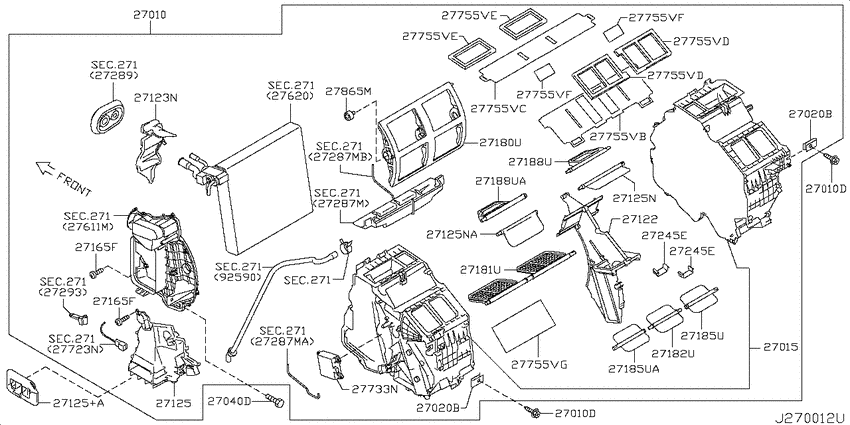

Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 21476-B0100 |
Clip-Cooler Case |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 21476-C5500 |
Clip |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27110-JF00A |
Heating Unit Assy-Front |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27111-2Y00B |
Screw |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27120-JK00A |
Case Assy-Front Heater |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27122-JK00A |
Case-Center, Front Heater |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27123-JK00A |
Case-Front Heater |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27125-JF00A |
Duct-Foot |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27126-JK00A |
Duct Assy-Foot |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27175-JK00A |
Packing |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27180-AL600 |
Door-Front Heater |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27181-JK60A |
Door Assy-Vent, No.1 |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27182-JF00A |
Door Assy-Vent, No.2 |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27182-JK60A |
Door-Air, No 3 |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27185-JK60A |
Door Assy-Foot |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27185-JK61A |
Door Assy-Foot |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27187-JK60A |
Door-Air, No 2 |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27187-JK61A |
Door-Air, No 2 |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27188-JK60A |
Door Assy-Def |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27188-JK61A |
Door Assy-Def |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27199-2J00A |
Screw |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27288-JK00A |
Insulator |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27288-JK01A |
Insulator |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27288-JK60A |
Insulator |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27288-JK61A |
Insulator |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27288-JK62A |
Insulator |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27288-JK63A |
Insulator |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27840-JK01A |
Duct Assy-Foot |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27841-JK01A |
Duct Assy-Foot |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
| 27865-EG000 |
Adapter-Center Vent & Def |
Heater & blower unit (2007-11-01 ~ ; ﾌﾛﾝﾄ ﾋｰﾀｰ LH; C) |
