R35

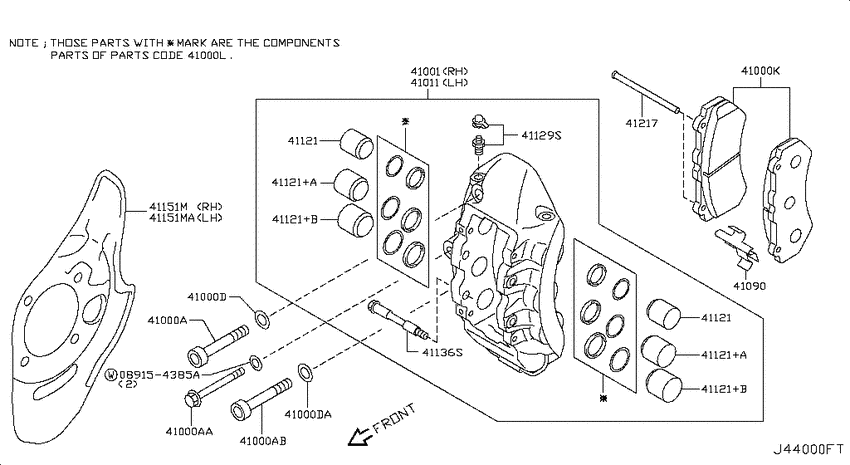

Front brake (2008-03-01 ~ ; VR38DETT) 7
| # | OEM | Part name |
|---|---|---|
| 41001 | 41001-JF20D | Caliper Assy-Front Rh, W/o Pads Or Shims |
| 41011 | 41011-JF20D | Caliper Assy-Front Lh, W/o Pads Or Shims |
| 41121 | 41121-JF20A | Piston-Cylinder |
| 41121 | 41121-JF20B | Piston-Cylinder |
| 41121 | 41121-JF20C | Piston-Cylinder |
| 41151 | 41151-JF00A | Plate-Baffle |
| 89154385 | 08915-4385A | ワツシヤ-,プレ-ン |
| OEM | Part name | Category |
|---|---|---|
| 08915-4385A | ワツシヤ-,プレ-ン | Front brake (2008-03-01 ~ ; VR38DETT) |
| 41001-JF20D | Caliper Assy-Front Rh, W/o Pads Or Shims | Front brake (2008-03-01 ~ ; VR38DETT) |
| 41011-JF20D | Caliper Assy-Front Lh, W/o Pads Or Shims | Front brake (2008-03-01 ~ ; VR38DETT) |
| 41121-JF20A | Piston-Cylinder | Front brake (2008-03-01 ~ ; VR38DETT) |
| 41121-JF20B | Piston-Cylinder | Front brake (2008-03-01 ~ ; VR38DETT) |
| 41121-JF20C | Piston-Cylinder | Front brake (2008-03-01 ~ ; VR38DETT) |
| 41151-JF00A | Plate-Baffle | Front brake (2008-03-01 ~ ; VR38DETT) |
