Search › Model › R35
R35

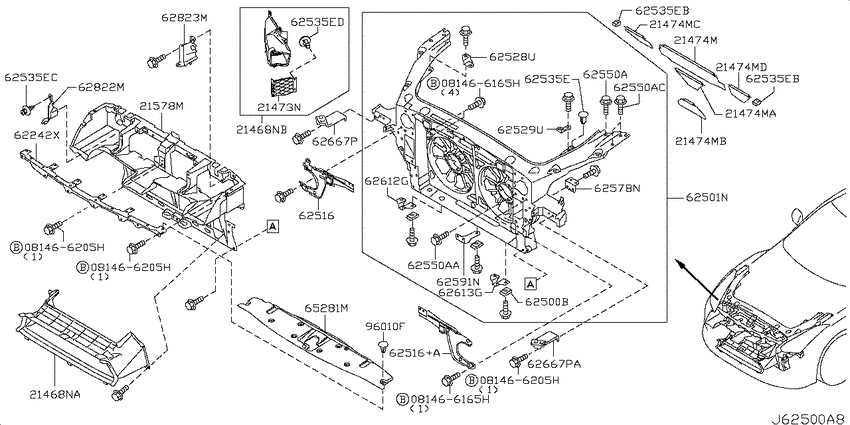

Front apron & radiator core support (2007-11-01 ~ ; C) 9
| # | OEM | Part name |
|---|---|---|
| 21473 | 21473-JF00A | Net-Rad |
| 62528 | 62528-JF00A | Bracket-Radiator Core Side, Rh |
| 62529 | 62529-JF00A | Bracket-Radiator Core Side, Lh |
| 62535 | 01553-05933 | CLIP |
| 62550 | 62297-JF00A | Bolt |
| 62578 | 62578-JF00A | Pipe-Radiator Core Upper |
| 62591 | 62591-JF00A | Brkt-Rad Mtg, Lwr |
| 62612 | 62576-JF00A | Bracket-Apron Side, Rh |
| 62613 | 62577-JF00A | Bracket-Apron Side, Lh |
| OEM | Part name | Category |
|---|---|---|
| 01553-05933 | CLIP | Front apron & radiator core support (2007-11-01 ~ ; C) |
| 21473-JF00A | Net-Rad | Front apron & radiator core support (2007-11-01 ~ ; C) |
| 62297-JF00A | Bolt | Front apron & radiator core support (2007-11-01 ~ ; C) |
| 62528-JF00A | Bracket-Radiator Core Side, Rh | Front apron & radiator core support (2007-11-01 ~ ; C) |
| 62529-JF00A | Bracket-Radiator Core Side, Lh | Front apron & radiator core support (2007-11-01 ~ ; C) |
| 62576-JF00A | Bracket-Apron Side, Rh | Front apron & radiator core support (2007-11-01 ~ ; C) |
| 62577-JF00A | Bracket-Apron Side, Lh | Front apron & radiator core support (2007-11-01 ~ ; C) |
| 62578-JF00A | Pipe-Radiator Core Upper | Front apron & radiator core support (2007-11-01 ~ ; C) |
| 62591-JF00A | Brkt-Rad Mtg, Lwr | Front apron & radiator core support (2007-11-01 ~ ; C) |
