| 08120-6355E |
Bolt-hexagon |

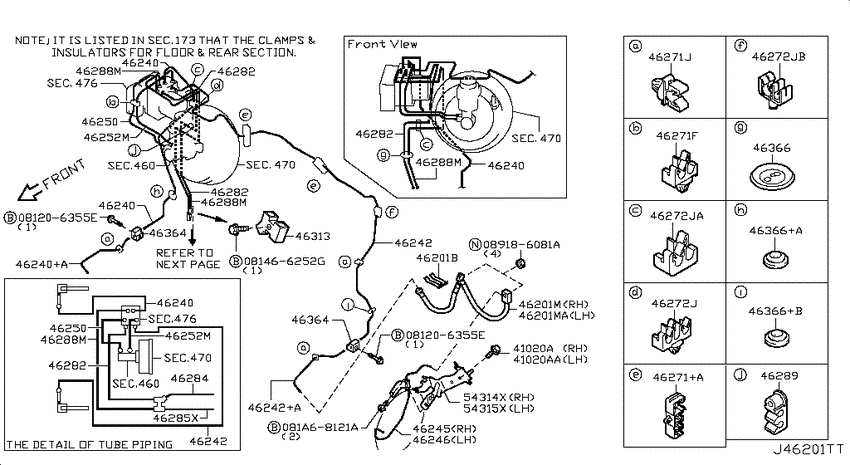

Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46210-JF00C |
Hose Assy-Brake, Front |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46211-JF00C |
Hose Assy-Brake, Front |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46240-JF06A |
Tube Assy-Brake, Front Rh |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46240-JF11A |
Tube Assy-Brake, Front Rh |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46242-JF06A |
Tube Assy-Brake, Front Lh |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46242-JF11A |
Tube Assy-Brake, Front Lh |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46245-JF00A |
Tube Assy-Front Brake, Rh |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46246-JF00A |
Tube Assy-Front Brake, Lh |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46250-JF12A |
Tube Assy-Brake, Master Cylinder To Front |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46252-JF12A |
Tube Assy-Brake, Master Cylinder To Rear |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46271-AM600 |
Clip-Tube, Brake |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46272-1P100 |
Insulator |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46272-3S200 |
Insulator |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46282-JF11A |
Tube Assy-Brake, Rear |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46282-JF15A |
Tube Assy-Brake, Rear |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46282-JF15B |
Tube Assy-Brake, Rear |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46283-JF11A |
Tube Assy-Brake, Rear Lh |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46283-JF15A |
Tube Assy-Brake, Rear Lh |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46283-JF15B |
Tube Assy-Brake, Rear Lh |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46284-JF00A |
Tube Assy-Brake, Rear |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46285-JF00A |
Tube Assy-Brake, Rear |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46313-JG00A |
Connector-Brake Tube |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46366-JF00A |
Grommet |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 46366-JF01A |
Grommet |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 54314-JF00A |
Bracket-Brake Hose, Rh |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
| 54315-JF00A |
Bracket-Brake Hose, Lh |
Brake piping & control (2008-03-01 ~ ; PIPING; C) |
