Search › Model › R35
R35

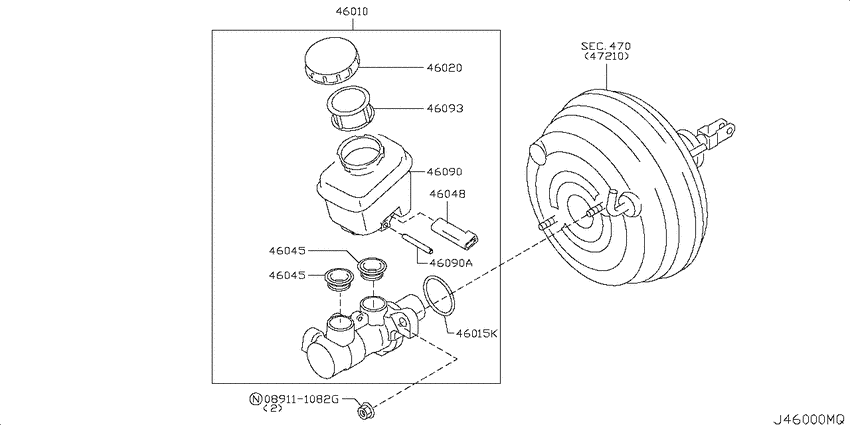

Brake master cylinder (2007-11-01 ~ ; VR38DETT) 4
| # | OEM | Part name |
|---|---|---|
| 46020 | 46020-64J03 | Cap Assy-Oil Reservoir Tank |
| 46048 | 46048-64J01 | Indicator Assy-Level |
| 46090 | 46091-JF00B | Tank-Oil Reservoir |
| 46090 | 46037-AD000 | Pin-Spring |
| OEM | Part name | Category |
|---|---|---|
| 46020-64J03 | Cap Assy-Oil Reservoir Tank | Brake master cylinder (2007-11-01 ~ ; VR38DETT) |
| 46037-AD000 | Pin-Spring | Brake master cylinder (2007-11-01 ~ ; VR38DETT) |
| 46048-64J01 | Indicator Assy-Level | Brake master cylinder (2007-11-01 ~ ; VR38DETT) |
| 46091-JF00B | Tank-Oil Reservoir | Brake master cylinder (2007-11-01 ~ ; VR38DETT) |
