R33

Nissan SKYLINE · 1993 · 4,888 parts · 858 categories

4,888 items

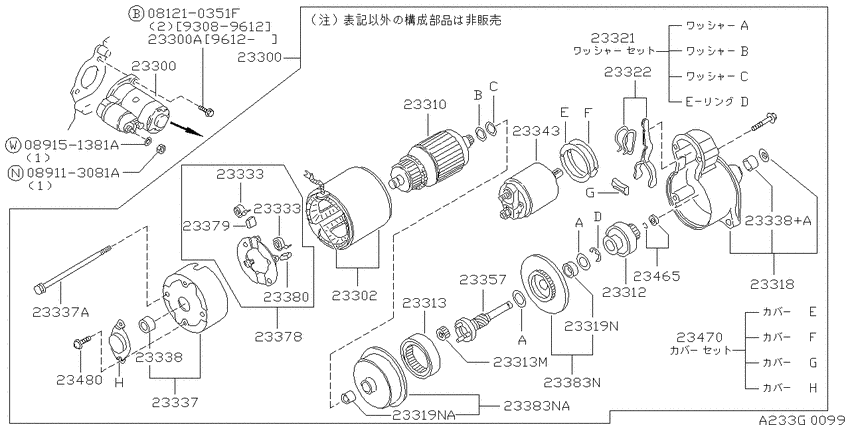

Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT) 24

#	OEM	Part name
23300	23300-20P05	Motor Assy-Starter
23300	01121-05901	BOLT
23302	23302-50Y01	Yoke Assy
23310	23310-50Y01	Armature Assy
23312	23312-20P05	Pinion Assy
23313	23361-1P100	Gear
23313	23367-1P100	Planet Gear
23318	23318-20P05	Case Assy-Gear
23319	23319-97E00	METAL-GEAR CASE
23321	23369-1E400	Washer Set-Thrust
23322	23322-52F05	Lever Set-Shift
23333	23333-1P100	Spring-Brush
23337	23337-20P05	Cover Assy-Rear
23343	23343-52F00	Switch Assy-Magnetic
23357	23357-50Y01	Shaft-Pinion
23378	23378-1E400	Holder Assy-Brush
23378	23378-AM60A	Holder Assy-Brush
23379	23379-1P100	Brush-Minus
23380	23380-1E400	Brush-Plus
23383	23383-1E400	Bracket Assy-Center
23383	23383-1P101	Bracket Assy-Center
23465	23465-80W00	Stopper Set-Pinion
23470	23470-1P100	Cover Set-Dust
89113081	08911-3081A	Nut-Wiper Arm

OEM	Part name	Category
01121-05901	BOLT	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
08911-3081A	Nut-Wiper Arm	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23300-20P05	Motor Assy-Starter	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23302-50Y01	Yoke Assy	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23310-50Y01	Armature Assy	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23312-20P05	Pinion Assy	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23318-20P05	Case Assy-Gear	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23319-97E00	METAL-GEAR CASE	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23322-52F05	Lever Set-Shift	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23333-1P100	Spring-Brush	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23337-20P05	Cover Assy-Rear	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23343-52F00	Switch Assy-Magnetic	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23357-50Y01	Shaft-Pinion	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23361-1P100	Gear	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23367-1P100	Planet Gear	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23369-1E400	Washer Set-Thrust	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23378-1E400	Holder Assy-Brush	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23378-AM60A	Holder Assy-Brush	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23379-1P100	Brush-Minus	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23380-1E400	Brush-Plus	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23383-1E400	Bracket Assy-Center	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23383-1P101	Bracket Assy-Center	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23465-80W00	Stopper Set-Pinion	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
23470-1P100	Cover Set-Dust	Starter motor (1997-02-01 ~ ; *=寒冷地仕様日立; RB26DETT)
