Search › Model › R33
R33

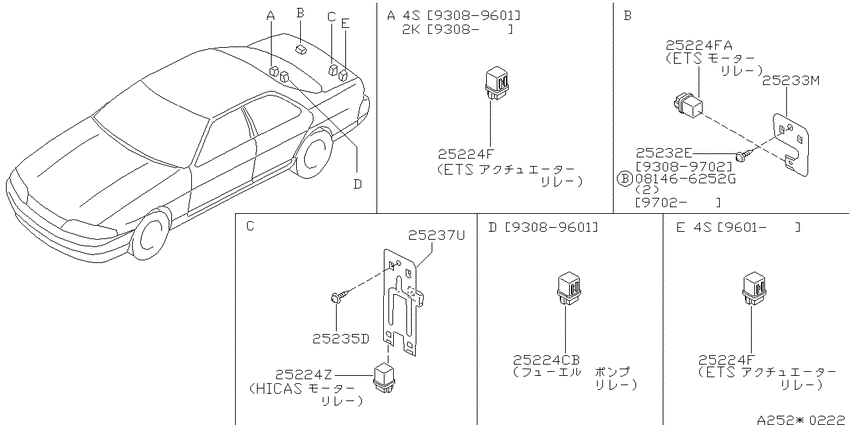

Relay (1993-08-01 ~ 1995-01-01; ルーム; 4S +2K) 8
| # | OEM | Part name |
|---|---|---|
| 25224 | 25230-79971 | Relay |
| 25224 | 25230-79962 | Relay |
| 25224 | 25230-79972 | Relay |
| 25224 | 25230-05U00 | Relay |
| 25232 | 01436-01231 | Bolt |
| 25233 | 25235-23U00 | Bracket-Relay |
| 25235 | 01466-00022 | Bolt |
| 25237 | 25235-19U00 | Bracket-Relay |
| OEM | Part name | Category |
|---|---|---|
| 01436-01231 | Bolt | Relay (1993-08-01 ~ 1995-01-01; ルーム; 4S +2K) |
| 01466-00022 | Bolt | Relay (1993-08-01 ~ 1995-01-01; ルーム; 4S +2K) |
| 25230-05U00 | Relay | Relay (1993-08-01 ~ 1995-01-01; ルーム; 4S +2K) |
| 25230-79962 | Relay | Relay (1993-08-01 ~ 1995-01-01; ルーム; 4S +2K) |
| 25230-79971 | Relay | Relay (1993-08-01 ~ 1995-01-01; ルーム; 4S +2K) |
| 25230-79972 | Relay | Relay (1993-08-01 ~ 1995-01-01; ルーム; 4S +2K) |
| 25235-19U00 | Bracket-Relay | Relay (1993-08-01 ~ 1995-01-01; ルーム; 4S +2K) |
| 25235-23U00 | Bracket-Relay | Relay (1993-08-01 ~ 1995-01-01; ルーム; 4S +2K) |
