Search › Model › R33
R33

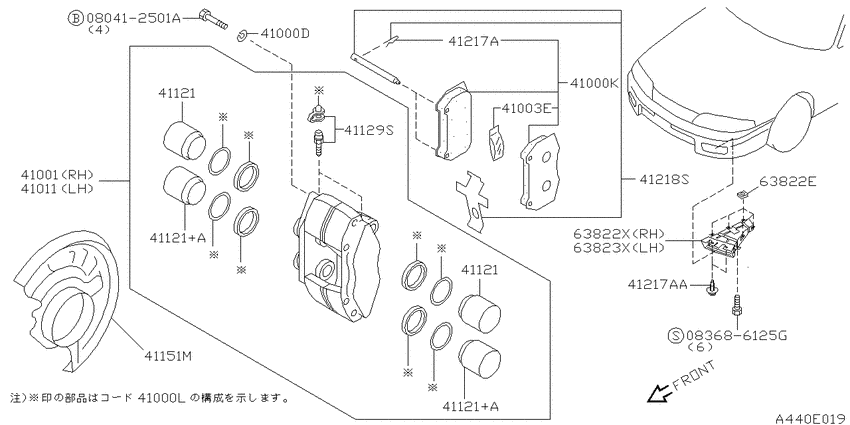

Front brake (1997-02-01 ~ ; RB26DETT) 9
| # | OEM | Part name |
|---|---|---|
| 41001 | 41001-24U00 | Caliper Assy-Front Rh, W/o Pads Or Shims |
| 41129 | 41129-12U25 | Cap And Screw Set |
| 41151 | 41150-12U15 | Plate-Baffle |
| 41151 | 41160-12U15 | Plate-Baffle |
| 41217 | 41218-24U00 | Clip |
| 63822 | 01241-01101 | NUT |
| 63822 | 63822-98U00 | Guide-Air, Brake |
| 63823 | 63823-98U00 | Guide-Air, Brake |
| 83686125 | 08368-6125G | スクリユ- |
| OEM | Part name | Category |
|---|---|---|
| 01241-01101 | NUT | Front brake (1997-02-01 ~ ; RB26DETT) |
| 08368-6125G | スクリユ- | Front brake (1997-02-01 ~ ; RB26DETT) |
| 41001-24U00 | Caliper Assy-Front Rh, W/o Pads Or Shims | Front brake (1997-02-01 ~ ; RB26DETT) |
| 41129-12U25 | Cap And Screw Set | Front brake (1997-02-01 ~ ; RB26DETT) |
| 41150-12U15 | Plate-Baffle | Front brake (1997-02-01 ~ ; RB26DETT) |
| 41160-12U15 | Plate-Baffle | Front brake (1997-02-01 ~ ; RB26DETT) |
| 41218-24U00 | Clip | Front brake (1997-02-01 ~ ; RB26DETT) |
| 63822-98U00 | Guide-Air, Brake | Front brake (1997-02-01 ~ ; RB26DETT) |
| 63823-98U00 | Guide-Air, Brake | Front brake (1997-02-01 ~ ; RB26DETT) |
