Search › Model › R33

R33

Nissan SKYLINE · 1993 · 4,888 parts · 858 categories

4,888 items

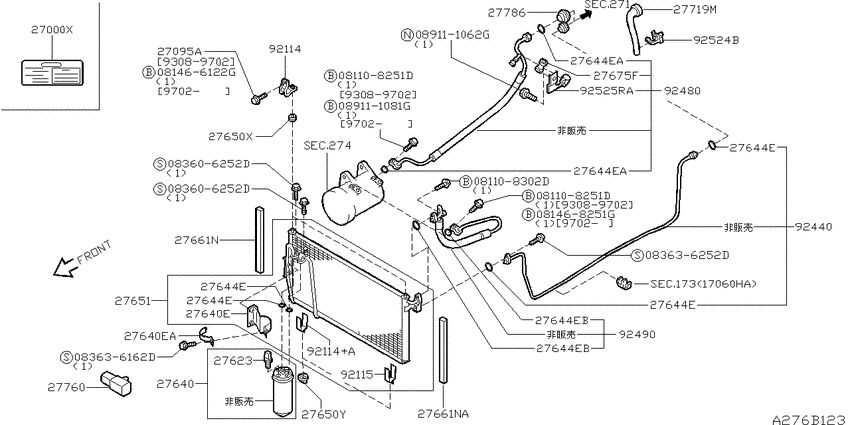

air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT) 20

#	OEM	Part name
27000	27090-0M001	Label-Air Con
27640	92136-24U00	Bracket-Liquid Tank
27640	92135-51S00	Bracket-Liquid Tank
27644	92471-N8210	O Ring
27651	92110-15U10	Condenser Unit
27651	92110-98U00	Condenser Unit
27661	92185-70T00	Seal-Rubber
27661	92184-4P000	Seal-Rubber
27675	92557-15U10	Protector-Clamp
27719	92590-70T00	Hose-Drain
92114	92114-24U00	ブラケツト,コンデンサ-
92115	92115-24U00	ブラケツト,コンデンサ-
92440	92440-24U60	パイプ,フロントク-ラ- ハイ
92480	92480-98U00	ホ-ス,フレキシブルロウ
92490	92490-24U10	ホ-ス,フレキシブルハイ
92490	92490-24U60	ホ-ス,フレキシブルハイ
92524	01552-01021	CLIP
92525	92553-0V100	クリツプ
83636162	08363-6162D	スクリユ-,マシン
83636162	08360-6162D	Screw

OEM	Part name	Category
01552-01021	CLIP	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
08360-6162D	Screw	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
08363-6162D	スクリユ-,マシン	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
27090-0M001	Label-Air Con	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
92110-15U10	Condenser Unit	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
92110-98U00	Condenser Unit	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
92114-24U00	ブラケツト,コンデンサ-	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
92115-24U00	ブラケツト,コンデンサ-	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
92135-51S00	Bracket-Liquid Tank	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
92136-24U00	Bracket-Liquid Tank	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
92184-4P000	Seal-Rubber	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
92185-70T00	Seal-Rubber	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
92440-24U60	パイプ,フロントク-ラ- ハイ	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
92471-N8210	O Ring	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
92480-98U00	ホ-ス,フレキシブルロウ	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
92490-24U10	ホ-ス,フレキシブルハイ	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
92490-24U60	ホ-ス,フレキシブルハイ	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
92553-0V100	クリツプ	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
92557-15U10	Protector-Clamp	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)
92590-70T00	Hose-Drain	air conditioner (engine room) (1997-02-01 ~ ; 4S.RB26DETT +2K.RB26DETT)

Source: Public OEM parts-catalog data
Variants: 2 / 49
Category: 858
Collected: 2026-07-26
