Search › Model › R31
R31

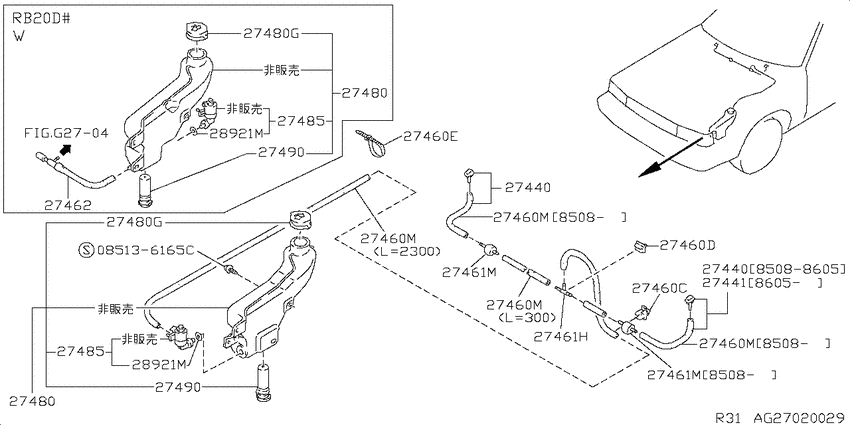

Windshield washer (1986-05-01 ~ ; 2K) 12
| # | OEM | Part name |
|---|---|---|
| 27440 | 28930-91S00 | Nozzle Assy-Washer, No 1 |
| 27441 | 28931-91S00 | Nozzle Assy-Washer, No 2 |
| 27460 | 01552-00132 | CLIP-HOSE |
| 27460 | 24222-89902 | Clip-Wiring Harness |
| 27461 | 27465-R3000 | Tee-Tube |
| 27461 | 28937-50A00 | Joint |
| 27462 | 28937-51S00 | Hose-Washer |
| 27480 | 28910-55S00 | Tank Assy-Windshield Washer |
| 27480 | 28910-55S01 | Tank Assy-Windshield Washer |
| 27480 | 28913-41L00 | Cover-Windshield Washer Tank |
| 27485 | 28920-V5000 | Pump Assy-Washer |
| 28921 | 28921-03E01 | PACKING-WASHER MOTOR |
| OEM | Part name | Category |
|---|---|---|
| 01552-00132 | CLIP-HOSE | Windshield washer (1986-05-01 ~ ; 2K) |
| 24222-89902 | Clip-Wiring Harness | Windshield washer (1986-05-01 ~ ; 2K) |
| 27465-R3000 | Tee-Tube | Windshield washer (1986-05-01 ~ ; 2K) |
| 28910-55S00 | Tank Assy-Windshield Washer | Windshield washer (1986-05-01 ~ ; 2K) |
| 28910-55S01 | Tank Assy-Windshield Washer | Windshield washer (1986-05-01 ~ ; 2K) |
| 28913-41L00 | Cover-Windshield Washer Tank | Windshield washer (1986-05-01 ~ ; 2K) |
| 28920-V5000 | Pump Assy-Washer | Windshield washer (1986-05-01 ~ ; 2K) |
| 28921-03E01 | PACKING-WASHER MOTOR | Windshield washer (1986-05-01 ~ ; 2K) |
| 28930-91S00 | Nozzle Assy-Washer, No 1 | Windshield washer (1986-05-01 ~ ; 2K) |
| 28931-91S00 | Nozzle Assy-Washer, No 2 | Windshield washer (1986-05-01 ~ ; 2K) |
| 28937-50A00 | Joint | Windshield washer (1986-05-01 ~ ; 2K) |
| 28937-51S00 | Hose-Washer | Windshield washer (1986-05-01 ~ ; 2K) |
