R31

Nissan SKYLINE · 1985 · 3,989 parts · 224 categories

3,989 items

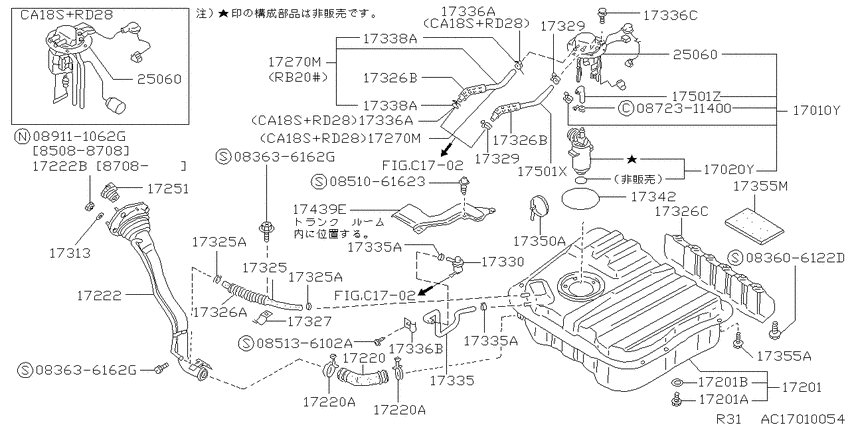

Fuel tank (1985-08-01 ~ ; S+K) 36

#	OEM	Part name
17010	17040-71S00	Pump Assy-Fuel
17010	17040-71S60	Pump Assy-Fuel
17020	17042-71S65	Pump-fuel
17020	17042-F6100	Pump-fuel
17201	17202-55S70	Tank Assy-Fuel
17201	17202-69L01	Tank Assy-Fuel
17201	01125-00062	Plug-Drain
17201	17232-S0160	Packing-Drain Plug
17201	17232-79900	Packing-Drain Plug
17220	17228-41L00	Hose-Filler
17220	01555-00311	CLAMP-HOSE
17222	17220-51S00	Neck Assy-Filler
17251	17251-V5001	Cap Assy-Filler
17270	17551-41L00	Hose-Outlet
17270	17555-41L00	Hose-Outlet
17313	01311-00831	WASHER-SEALING
17325	17226-41L01	Hose-Ventilation
17325	01555-00391	CLAMP-HOSE
17326	17227-01B00	Protector
17326	17227-41L00	Protector
17326	17381-41L00	Protector
17327	17326-41L00	Clamp
17329	01555-00191	CLAMP
17330	17330-41L00	Valve Assy-Fuel Check
17335	16439-N2100	Clamp-Hose
17336	24210-N5000	Clamp-Antenna Cord
17338	16439-N4710	Clamp-Hose
17350	01466-00151	SCREW
17355	01121-00911	BOLT
17355	17290-51S00	Cover-Flange, Fuel Tank
17501	17550-41L00	Hose-Fuel
25060	25060-55S01	Gauge Assy-Unit, Fuel Tank
25060	25060-55S60	Gauge Assy-Unit, Fuel Tank
83606122	08360-6122D	Screw
85136102	08513-6102A	スクリユ-,タツピング
851061623	08510-61623	SCREWTAPPING

OEM	Part name	Category
01121-00911	BOLT	Fuel tank (1985-08-01 ~ ; S+K)
01125-00062	Plug-Drain	Fuel tank (1985-08-01 ~ ; S+K)
01311-00831	WASHER-SEALING	Fuel tank (1985-08-01 ~ ; S+K)
01466-00151	SCREW	Fuel tank (1985-08-01 ~ ; S+K)
01555-00191	CLAMP	Fuel tank (1985-08-01 ~ ; S+K)
01555-00311	CLAMP-HOSE	Fuel tank (1985-08-01 ~ ; S+K)
01555-00391	CLAMP-HOSE	Fuel tank (1985-08-01 ~ ; S+K)
08360-6122D	Screw	Fuel tank (1985-08-01 ~ ; S+K)
08510-61623	SCREWTAPPING	Fuel tank (1985-08-01 ~ ; S+K)
08513-6102A	スクリユ-,タツピング	Fuel tank (1985-08-01 ~ ; S+K)
16439-N2100	Clamp-Hose	Fuel tank (1985-08-01 ~ ; S+K)
16439-N4710	Clamp-Hose	Fuel tank (1985-08-01 ~ ; S+K)
17040-71S00	Pump Assy-Fuel	Fuel tank (1985-08-01 ~ ; S+K)
17040-71S60	Pump Assy-Fuel	Fuel tank (1985-08-01 ~ ; S+K)
17042-71S65	Pump-fuel	Fuel tank (1985-08-01 ~ ; S+K)
17042-F6100	Pump-fuel	Fuel tank (1985-08-01 ~ ; S+K)
17202-55S70	Tank Assy-Fuel	Fuel tank (1985-08-01 ~ ; S+K)
17202-69L01	Tank Assy-Fuel	Fuel tank (1985-08-01 ~ ; S+K)
17220-51S00	Neck Assy-Filler	Fuel tank (1985-08-01 ~ ; S+K)
17226-41L01	Hose-Ventilation	Fuel tank (1985-08-01 ~ ; S+K)
17227-01B00	Protector	Fuel tank (1985-08-01 ~ ; S+K)
17227-41L00	Protector	Fuel tank (1985-08-01 ~ ; S+K)
17228-41L00	Hose-Filler	Fuel tank (1985-08-01 ~ ; S+K)
17232-79900	Packing-Drain Plug	Fuel tank (1985-08-01 ~ ; S+K)
17232-S0160	Packing-Drain Plug	Fuel tank (1985-08-01 ~ ; S+K)
17251-V5001	Cap Assy-Filler	Fuel tank (1985-08-01 ~ ; S+K)
17290-51S00	Cover-Flange, Fuel Tank	Fuel tank (1985-08-01 ~ ; S+K)
17326-41L00	Clamp	Fuel tank (1985-08-01 ~ ; S+K)
17330-41L00	Valve Assy-Fuel Check	Fuel tank (1985-08-01 ~ ; S+K)
17381-41L00	Protector	Fuel tank (1985-08-01 ~ ; S+K)
17550-41L00	Hose-Fuel	Fuel tank (1985-08-01 ~ ; S+K)
17551-41L00	Hose-Outlet	Fuel tank (1985-08-01 ~ ; S+K)
17555-41L00	Hose-Outlet	Fuel tank (1985-08-01 ~ ; S+K)
24210-N5000	Clamp-Antenna Cord	Fuel tank (1985-08-01 ~ ; S+K)
25060-55S01	Gauge Assy-Unit, Fuel Tank	Fuel tank (1985-08-01 ~ ; S+K)
25060-55S60	Gauge Assy-Unit, Fuel Tank	Fuel tank (1985-08-01 ~ ; S+K)
