R31

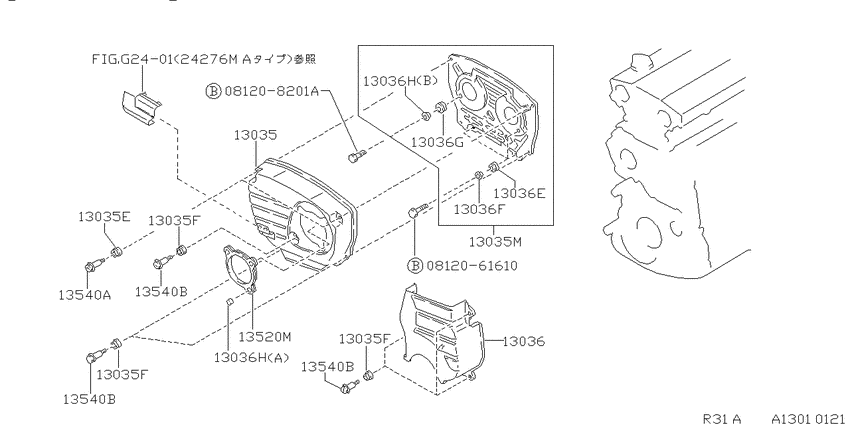

front cover (1985-08-01 ~ ; RB20D+RB20DT) 11
| # | OEM | Part name |
|---|---|---|
| 13035 | 13501-58S01 | Cover Assy-Front |
| 13035 | 13501-70S00 | Cover Assy-Front |
| 13035 | 13570-58S00 | Cover-Belt, Back |
| 13036 | 13560-58S00 | Cover-Front |
| 13036 | 13526-16A01 | Collar-Front Cover Grommet |
| 13036 | 13526-D2800 | Collar-Grommet |
| 13036 | 13526-D2801 | Collar-Grommet |
| 13540 | 13504-58S00 | Bolt-Front Cover |
| 13540 | 13505-D0101 | Bolt-Front Cover |
| 13540 | 13505-D010B | Bolt-front cove |
| 812061610 | 08120-61610 | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08120-61610 | Bolt-hexagon | front cover (1985-08-01 ~ ; RB20D+RB20DT) |
| 13501-58S01 | Cover Assy-Front | front cover (1985-08-01 ~ ; RB20D+RB20DT) |
| 13501-70S00 | Cover Assy-Front | front cover (1985-08-01 ~ ; RB20D+RB20DT) |
| 13504-58S00 | Bolt-Front Cover | front cover (1985-08-01 ~ ; RB20D+RB20DT) |
| 13505-D0101 | Bolt-Front Cover | front cover (1985-08-01 ~ ; RB20D+RB20DT) |
| 13505-D010B | Bolt-front cove | front cover (1985-08-01 ~ ; RB20D+RB20DT) |
| 13526-16A01 | Collar-Front Cover Grommet | front cover (1985-08-01 ~ ; RB20D+RB20DT) |
| 13526-D2800 | Collar-Grommet | front cover (1985-08-01 ~ ; RB20D+RB20DT) |
| 13526-D2801 | Collar-Grommet | front cover (1985-08-01 ~ ; RB20D+RB20DT) |
| 13560-58S00 | Cover-Front | front cover (1985-08-01 ~ ; RB20D+RB20DT) |
| 13570-58S00 | Cover-Belt, Back | front cover (1985-08-01 ~ ; RB20D+RB20DT) |
