Search › Model › R31
R31

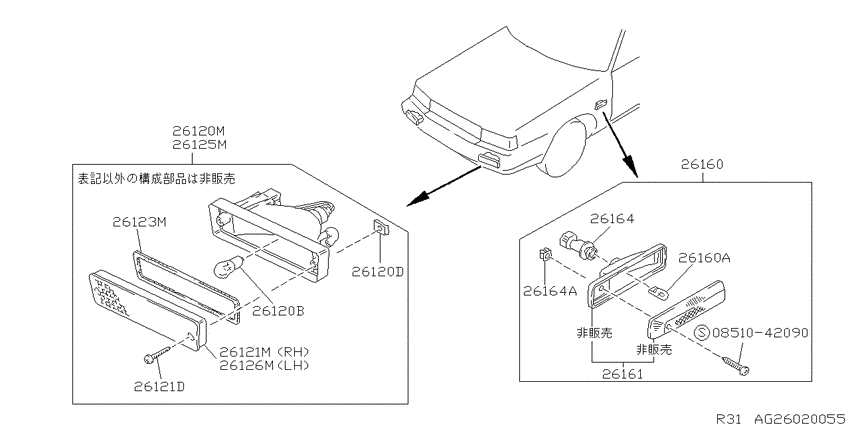

Front combination lamp (1985-08-01 ~ ; ALL) 6
| # | OEM | Part name |
|---|---|---|
| 26120 | 01241-00101 | NUT |
| 26120 | 01241-00621 | NUT |
| 26121 | 26131-51S00 | Lens-Front Turn Signal, Rh |
| 26126 | 26136-51S00 | Lens-Front Turn Signal, Lh |
| 26164 | 26244-51S00 | Cable Assy-Side Flasher Lamp |
| 851042090 | 08510-42090 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 01241-00101 | NUT | Front combination lamp (1985-08-01 ~ ; ALL) |
| 01241-00621 | NUT | Front combination lamp (1985-08-01 ~ ; ALL) |
| 08510-42090 | SCREW | Front combination lamp (1985-08-01 ~ ; ALL) |
| 26131-51S00 | Lens-Front Turn Signal, Rh | Front combination lamp (1985-08-01 ~ ; ALL) |
| 26136-51S00 | Lens-Front Turn Signal, Lh | Front combination lamp (1985-08-01 ~ ; ALL) |
| 26244-51S00 | Cable Assy-Side Flasher Lamp | Front combination lamp (1985-08-01 ~ ; ALL) |
