| 00922-51010 |
RINGSNAP |

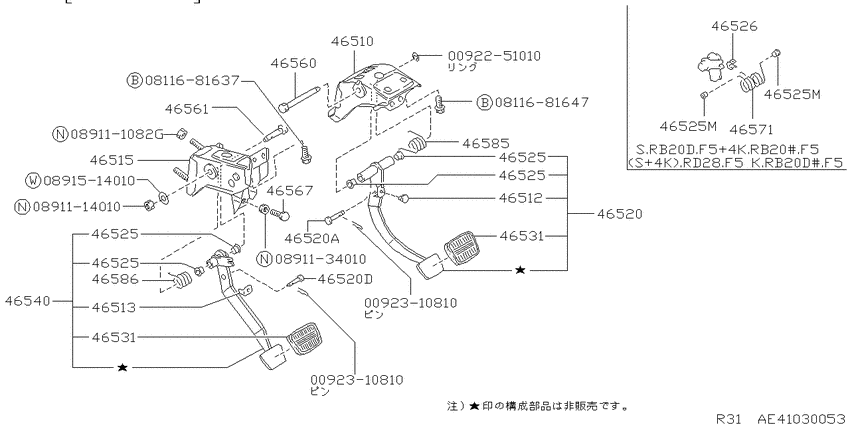

clutch & brake pedal (1986-05-01 ~ ; (S+K).MT) |
| 00923-10810 |
PIN-SNAP |
clutch & brake pedal (1986-05-01 ~ ; (S+K).MT) |
| 08116-81637 |
Bolt-hexagon |
clutch & brake pedal (1986-05-01 ~ ; (S+K).MT) |
| 08116-81647 |
Bolt-hexagon |
clutch & brake pedal (1986-05-01 ~ ; (S+K).MT) |
| 08911-14010 |
ナツト,ヘクサゴン |
clutch & brake pedal (1986-05-01 ~ ; (S+K).MT) |
| 08911-34010 |
ナツト,ヘクサゴン |
clutch & brake pedal (1986-05-01 ~ ; (S+K).MT) |
| 08915-14010 |
WASHER-LOCK |
clutch & brake pedal (1986-05-01 ~ ; (S+K).MT) |
| 46123-03W10 |
Pin-Clevis |
clutch & brake pedal (1986-05-01 ~ ; (S+K).MT) |
| 46510-F6100 |
Bracket Assy-Pedal |
clutch & brake pedal (1986-05-01 ~ ; (S+K).MT) |
| 46510-F6105 |
Bracket Assy-Pedal |
clutch & brake pedal (1986-05-01 ~ ; (S+K).MT) |
| 46520-F6100 |
Pedal Assy-Brake |
clutch & brake pedal (1986-05-01 ~ ; (S+K).MT) |
| 46520-F6105 |
Pedal Assy-Brake |
clutch & brake pedal (1986-05-01 ~ ; (S+K).MT) |
| 46534-11P01 |
Bush |
clutch & brake pedal (1986-05-01 ~ ; (S+K).MT) |
| 46540-F6100 |
Pedal Assy-Clutch |
clutch & brake pedal (1986-05-01 ~ ; (S+K).MT) |
| 46550-F6100 |
Bracket Assy-Clutch Pedal |
clutch & brake pedal (1986-05-01 ~ ; (S+K).MT) |
| 46560-01G00 |
Pin-Fulcrum |
clutch & brake pedal (1986-05-01 ~ ; (S+K).MT) |
| 46571-F6100 |
Spring-Assist |
clutch & brake pedal (1986-05-01 ~ ; (S+K).MT) |
| 46585-F6100 |
Spring-Return |
clutch & brake pedal (1986-05-01 ~ ; (S+K).MT) |
