Search › Model › R20
R20

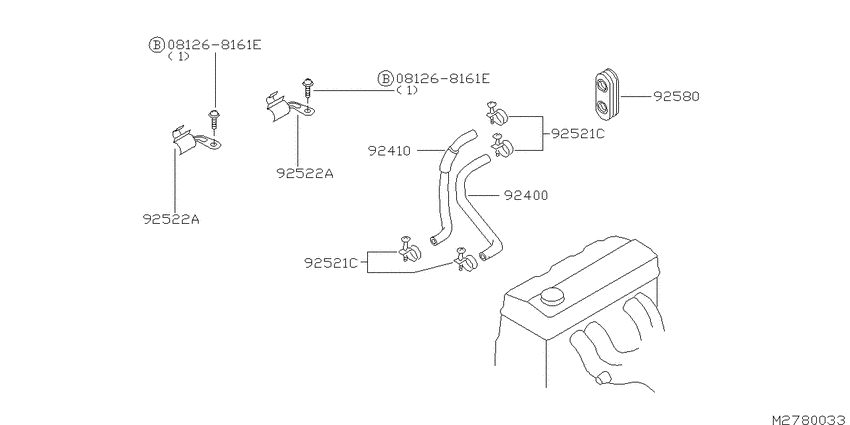

Heater piping (1996-10-01 ~ ; W) 8
| # | OEM | Part name |
|---|---|---|
| 92400 | 92400-0F100 | HOSEHEATERINL |
| 92410 | 92410-0F100 | ホ-ス,ヒ-タ- アウトレツト |
| 92410 | 92410-7F000 | HOSEHEATEROUT |
| 92521 | 01555-00361 | CLAMP-HOSE |
| 92521 | 01556-2701M | Clip |
| 92522 | 92520-0F100 | クリツプ |
| 92580 | 92580-0F000 | グロメツト |
| 81268161 | 08126-8161E | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 01555-00361 | CLAMP-HOSE | Heater piping (1996-10-01 ~ ; W) |
| 01556-2701M | Clip | Heater piping (1996-10-01 ~ ; W) |
| 08126-8161E | Bolt-hexagon | Heater piping (1996-10-01 ~ ; W) |
| 92400-0F100 | HOSEHEATERINL | Heater piping (1996-10-01 ~ ; W) |
| 92410-0F100 | ホ-ス,ヒ-タ- アウトレツト | Heater piping (1996-10-01 ~ ; W) |
| 92410-7F000 | HOSEHEATEROUT | Heater piping (1996-10-01 ~ ; W) |
| 92520-0F100 | クリツプ | Heater piping (1996-10-01 ~ ; W) |
| 92580-0F000 | グロメツト | Heater piping (1996-10-01 ~ ; W) |
