Search › Model › R20
R20

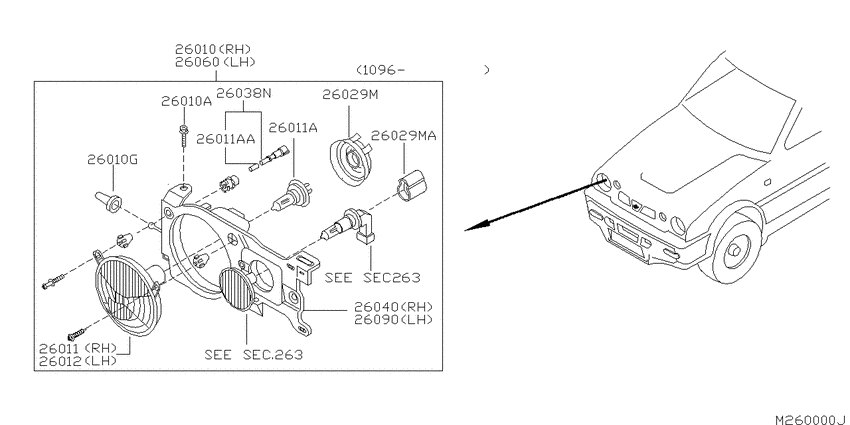

Head lamp (1996-10-01 ~ ; W) 13
| # | OEM | Part name |
|---|---|---|
| 26010 | 01436-01331 | Bolt |
| 26010 | 26399-D4000 | Grommet-Screw |
| 26011 | 26014-7F725 | Head Lamp Unit |
| 26011 | 26294-0F000 | Bulb |
| 26011 | 26294-1F100 | Bulb |
| 26011 | 26261-0F000 | Bulb |
| 26012 | 26064-7F725 | Head Lamp Unit |
| 26029 | 26029-0F000 | Cover-Socket |
| 26029 | 26029-7F000 | Cover-Socket |
| 26029 | 26029-7F020 | Cover-Socket |
| 26038 | 26240-7F000 | Harness Assy-Head Lamp |
| 26040 | 26042-7F000 | Bracket Assy-Head Lamp, Rh |
| 26090 | 26092-7F000 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 01436-01331 | Bolt | Head lamp (1996-10-01 ~ ; W) |
| 26014-7F725 | Head Lamp Unit | Head lamp (1996-10-01 ~ ; W) |
| 26029-0F000 | Cover-Socket | Head lamp (1996-10-01 ~ ; W) |
| 26029-7F000 | Cover-Socket | Head lamp (1996-10-01 ~ ; W) |
| 26029-7F020 | Cover-Socket | Head lamp (1996-10-01 ~ ; W) |
| 26042-7F000 | Bracket Assy-Head Lamp, Rh | Head lamp (1996-10-01 ~ ; W) |
| 26064-7F725 | Head Lamp Unit | Head lamp (1996-10-01 ~ ; W) |
| 26092-7F000 | New Genuine Part | Head lamp (1996-10-01 ~ ; W) |
| 26240-7F000 | Harness Assy-Head Lamp | Head lamp (1996-10-01 ~ ; W) |
| 26261-0F000 | Bulb | Head lamp (1996-10-01 ~ ; W) |
| 26294-0F000 | Bulb | Head lamp (1996-10-01 ~ ; W) |
| 26294-1F100 | Bulb | Head lamp (1996-10-01 ~ ; W) |
| 26399-D4000 | Grommet-Screw | Head lamp (1996-10-01 ~ ; W) |
