R20

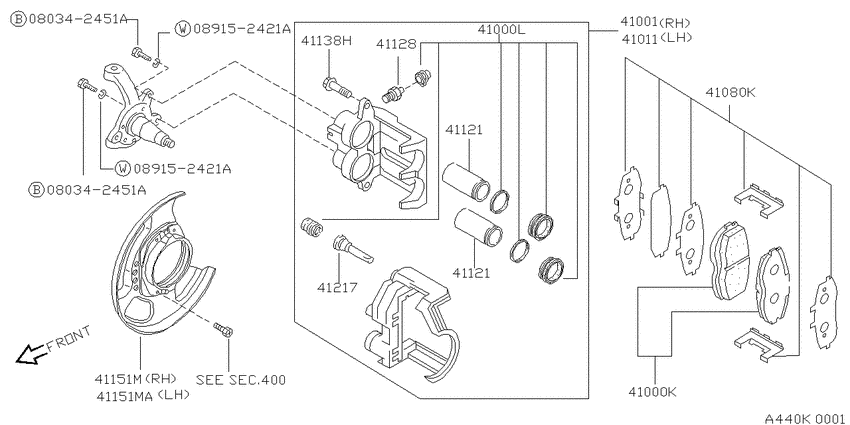

Front brake (1996-10-01 ~ ; K.TD27TI) 12
| # | OEM | Part name |
|---|---|---|
| 41001 | 41001-10G02 | Caliper Assy-Front Rh, W/o Pads Or Shims |
| 41001 | 41001-10G0A | Caliper Assy-Front Rh, W/o Pad & Shim |
| 41011 | 41011-10G02 | Caliper Assy-Front Lh, W/o Pads Or Shims |
| 41011 | 41011-10G0A | Caliper Assy-Front Lh, W/o Pad & Shim |
| 41080 | 41080-09G28 | Hardware Kit-Front Disc Brake Pad |
| 41138 | 44141-N9500 | Pin-Bolt |
| 41151 | 41150-31G01 | Plate-Baffle |
| 41151 | 41151-7F700 | Plate-Baffle |
| 41151 | 41160-31G01 | Plate-Baffle |
| 41151 | 41161-7F700 | Plate-Baffle |
| 80342451 | 08034-2451A | Bolt-hexagon |
| 80342451 | 08044-2451A | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08034-2451A | Bolt-hexagon | Front brake (1996-10-01 ~ ; K.TD27TI) |
| 08044-2451A | Bolt-hexagon | Front brake (1996-10-01 ~ ; K.TD27TI) |
| 41001-10G02 | Caliper Assy-Front Rh, W/o Pads Or Shims | Front brake (1996-10-01 ~ ; K.TD27TI) |
| 41001-10G0A | Caliper Assy-Front Rh, W/o Pad & Shim | Front brake (1996-10-01 ~ ; K.TD27TI) |
| 41011-10G02 | Caliper Assy-Front Lh, W/o Pads Or Shims | Front brake (1996-10-01 ~ ; K.TD27TI) |
| 41011-10G0A | Caliper Assy-Front Lh, W/o Pad & Shim | Front brake (1996-10-01 ~ ; K.TD27TI) |
| 41080-09G28 | Hardware Kit-Front Disc Brake Pad | Front brake (1996-10-01 ~ ; K.TD27TI) |
| 41150-31G01 | Plate-Baffle | Front brake (1996-10-01 ~ ; K.TD27TI) |
| 41151-7F700 | Plate-Baffle | Front brake (1996-10-01 ~ ; K.TD27TI) |
| 41160-31G01 | Plate-Baffle | Front brake (1996-10-01 ~ ; K.TD27TI) |
| 41161-7F700 | Plate-Baffle | Front brake (1996-10-01 ~ ; K.TD27TI) |
| 44141-N9500 | Pin-Bolt | Front brake (1996-10-01 ~ ; K.TD27TI) |
