R20

Nissan MISTRAL · 1994 · 4,750 parts · 695 categories

4,750 items

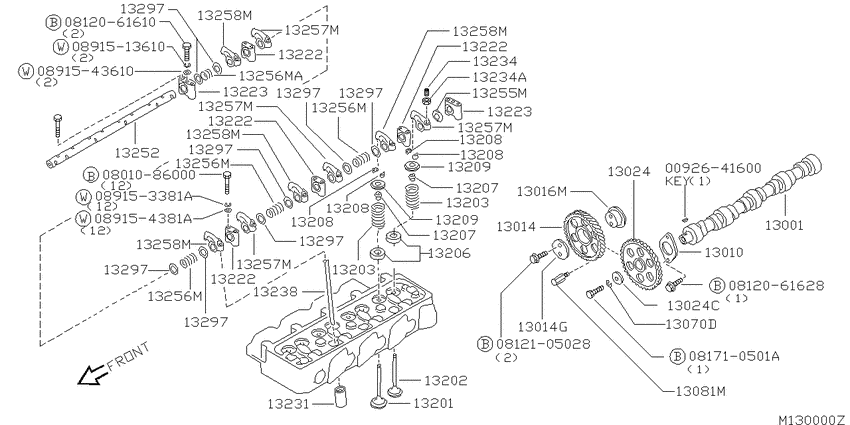

Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T) 44

#	OEM	Part name
13001	13001-7F400	Camshaft Assy
13001	13001-86P00	Camshaft Assy
13010	13010-06J00	Plate-Locating, Camshaft
13010	13010-43G00	Plate-Locating, Camshaft
13014	13012-43G01	Gear-Idler
13014	13011-43G00	Plate-Idler Gear
13016	13016-G2400	Shaft-Idler Gear
13024	13024-0W801	Sprocket-Camshaft
13024	13024-87G00	Sprocket-Camshaft
13024	13030-37500	Washer-Plain
13024	16756-0W800	Pin-Guide
13070	01321-1002M	Washer-Lock
13081	13081-76202	Jet-Oil, Timing Chain
13081	13081-G2400	Jet-Oil
13201	13201-G2403	Valve-Intake
13202	13202-G2403	Valve-Exhaust
13202	13202-G2404	Valve-Exhaust
13203	13203-G2400	Spring-Valve, Outer
13203	13203-G2401	Spring-Valve, Outer
13206	13206-31N01	Seat-Valve Spring, Inner
13206	13206-31N00	Seat-Valve Spring, Inner
13207	13207-G2402	Seal-Oil, Valve
13208	13208-Z5500	Collet-Valve Spring
13209	13209-43G01	Retainer-valve spring
13222	13222-43G00	Bracket-Rocker Shaft
13222	01311-0802M	Washer-Plain
13223	13223-43G01	Bracket-Rocker Shaft
13231	13231-54T02	Lifter-Valve
13238	13238-43G00	Rod-Push
13238	13238-G2402	Rod-Push
13252	13252-43G02	Shaft-Rocker
13255	13255-43G00	Spring-Rocker
13256	13256-43G01	Spring-Rocker
13256	13256-43G02	Spring-Rocker
13257	13257-63G00	Rocker-Valve
13258	13258-63G00	Rocker-Valve
13297	13297-43G00	Washer-Rocker Shaft
81710501	08171-0501A	Bolt-hexagon
92641600	00926-41600	KEY
801086000	08010-86000	Bolt-hexagon
812061610	08120-61610	Bolt-hexagon
812105028	08121-05028	Bolt-hexagon
891513610	08915-13610	ワツシヤ-,スプリング
891543610	08915-43610	ワツシヤ-,プレ-ン

OEM	Part name	Category
00926-41600	KEY	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
01311-0802M	Washer-Plain	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
01321-1002M	Washer-Lock	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
08010-86000	Bolt-hexagon	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
08120-61610	Bolt-hexagon	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
08121-05028	Bolt-hexagon	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
08171-0501A	Bolt-hexagon	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
08915-13610	ワツシヤ-,スプリング	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
08915-43610	ワツシヤ-,プレ-ン	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13001-7F400	Camshaft Assy	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13001-86P00	Camshaft Assy	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13010-06J00	Plate-Locating, Camshaft	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13010-43G00	Plate-Locating, Camshaft	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13011-43G00	Plate-Idler Gear	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13012-43G01	Gear-Idler	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13016-G2400	Shaft-Idler Gear	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13024-0W801	Sprocket-Camshaft	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13024-87G00	Sprocket-Camshaft	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13030-37500	Washer-Plain	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13081-76202	Jet-Oil, Timing Chain	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13081-G2400	Jet-Oil	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13201-G2403	Valve-Intake	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13202-G2403	Valve-Exhaust	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13202-G2404	Valve-Exhaust	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13203-G2400	Spring-Valve, Outer	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13203-G2401	Spring-Valve, Outer	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13206-31N00	Seat-Valve Spring, Inner	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13206-31N01	Seat-Valve Spring, Inner	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13207-G2402	Seal-Oil, Valve	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13208-Z5500	Collet-Valve Spring	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13209-43G01	Retainer-valve spring	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13222-43G00	Bracket-Rocker Shaft	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13223-43G01	Bracket-Rocker Shaft	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13231-54T02	Lifter-Valve	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13238-43G00	Rod-Push	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13238-G2402	Rod-Push	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13252-43G02	Shaft-Rocker	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13255-43G00	Spring-Rocker	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13256-43G01	Spring-Rocker	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13256-43G02	Spring-Rocker	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13257-63G00	Rocker-Valve	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13258-63G00	Rocker-Valve	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
13297-43G00	Washer-Rocker Shaft	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
16756-0W800	Pin-Guide	Camshaft & valve mechanism (1994-05-01 ~ 1995-11-01; TD27T)
