R20

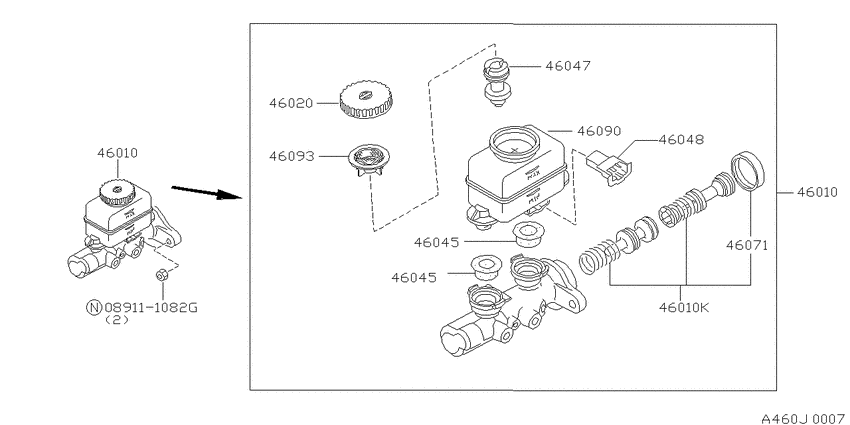

Brake master cylinder (1996-10-01 ~ ; W.TD27TI) 8
| # | OEM | Part name |
|---|---|---|
| 46010 | 46010-1F101 | Cylinder Assy-Brake Master |
| 46010 | 46010-7F710 | Cylinder Assy-Brake Master |
| 46010 | 46011-14Y26 | Piston Kit-Tandem Brake Master Cylinder |
| 46020 | 46020-64J03 | Cap Assy-Oil Reservoir Tank |
| 46047 | 46047-60U04 | Float-Reservoir Tank |
| 46048 | 46048-64J01 | Indicator Assy-Level |
| 46071 | 46082-01A1A | Ring-Snap |
| 46090 | 46091-60U04 | Tank-Oil Reservoir |
| OEM | Part name | Category |
|---|---|---|
| 46010-1F101 | Cylinder Assy-Brake Master | Brake master cylinder (1996-10-01 ~ ; W.TD27TI) |
| 46010-7F710 | Cylinder Assy-Brake Master | Brake master cylinder (1996-10-01 ~ ; W.TD27TI) |
| 46011-14Y26 | Piston Kit-Tandem Brake Master Cylinder | Brake master cylinder (1996-10-01 ~ ; W.TD27TI) |
| 46020-64J03 | Cap Assy-Oil Reservoir Tank | Brake master cylinder (1996-10-01 ~ ; W.TD27TI) |
| 46047-60U04 | Float-Reservoir Tank | Brake master cylinder (1996-10-01 ~ ; W.TD27TI) |
| 46048-64J01 | Indicator Assy-Level | Brake master cylinder (1996-10-01 ~ ; W.TD27TI) |
| 46082-01A1A | Ring-Snap | Brake master cylinder (1996-10-01 ~ ; W.TD27TI) |
| 46091-60U04 | Tank-Oil Reservoir | Brake master cylinder (1996-10-01 ~ ; W.TD27TI) |
