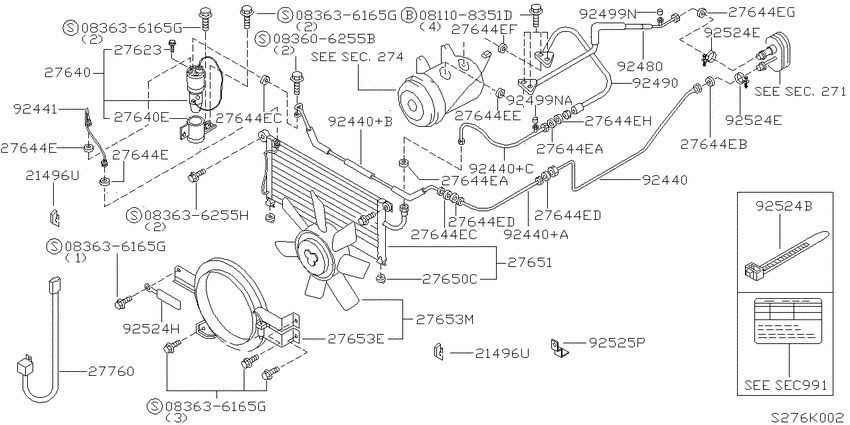

| 01552-00401 |
CLIP-WIRING HARNESS |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 08110-8351D |
Bolt-hexagon |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 08360-6255B |
スクリユ-,マシン |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 08363-6255H |
スクリユ-,マシン |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 21568-0F000 |
Seal-Upper |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 24210-01W07 |
Clip-Wiring Harness |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 24210-01W0A |
Clip |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 27715-1F100 |
Bracket-Ambient Sensor |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 27722-86G00 |
Sensor Assy-Ambient |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92108-D0100 |
Mounting Rubber |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92110-0F010 |
Condenser Unit |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92110-7F700 |
Condenser Unit |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92120-1F100 |
Fan & Motor Assy-Condenser |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92120-1F101 |
Fan & Motor Assy-Condenser |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92120-1F110 |
Fan & Motor Assy-Condenser |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92123-0F110 |
Shroud-Condenser |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92123-1F110 |
Shroud-Condenser |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92123-7F700 |
Shroud-Condenser |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92131-7F700 |
Tank Assy-Liquid |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92136-7F000 |
Bracket-Liquid Tank |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92137-1P600 |
Switch Assy-Pressure |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92137-7F700 |
Switch Assy-Pressure |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92440-1F100 |
パイプ,フロント ク-ラ- ハイ |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92440-1F110 |
パイプ,フロント ク-ラ- ハイ |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92440-7F011 |
パイプ,フロント ク-ラ- ハイ |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92440-7F410 |
パイプ,フロント ク-ラ- ハイ |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92440-7F700 |
パイプ,フロント ク-ラ- ハイ |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92441-7F000 |
パイプ,フロント ク-ラ- ハイ a |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92470-N8200 |
O Ring |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92473-N8200 |
O Ring |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92480-7F400 |
ホ-ス,フレキシブル ロウ |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92490-0F011 |
ホ-ス,フレキシブル ハイ |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92490-7F000 |
ホ-ス,フレキシブル ハイ |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92499-7F000 |
CAPCHARGE VALV |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92499-7F001 |
キヤツプ,チヤ-ジ バルブ |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92550-0F010 |
クリツプ |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
| 92550-7F010 |
クリツプ |
air conditioner (engine room) (1996-10-01 ~ ; K +W) |
