R20

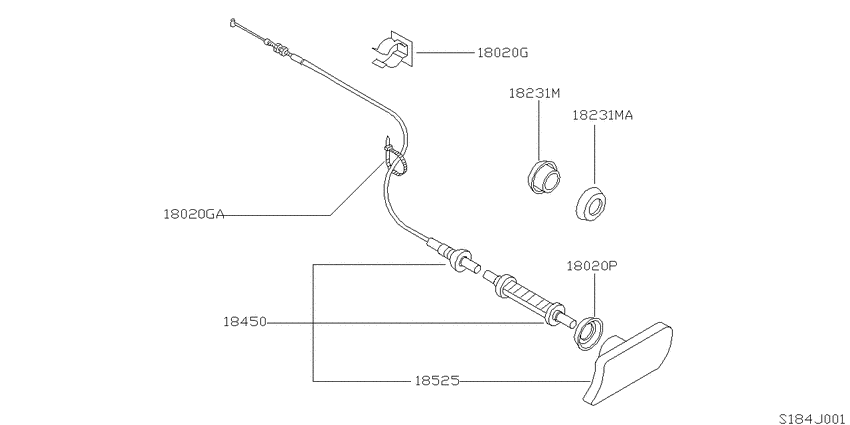

ﾁｮｰｸ & ｽﾛｯﾄﾙ ｺﾝﾄﾛｰﾙ (1994-02-01 ~ 1995-11-01; <0294-1096>; TD27T) 7
| # | OEM | Part name |
|---|---|---|
| 18020 | 24220-57J00 | Clamp-Hose, B |
| 18020 | 24220-20J00 | Clip-Wiring Harness |
| 18020 | 25163-0F000 | Escutcheon |
| 18231 | 18231-W9800 | Bush |
| 18231 | 18232-W9800 | Bush |
| 18450 | 18450-0F425 | Wire Assy-Engine Control |
| 18525 | 18465-0F000 | Knob-Throttle Control |
| OEM | Part name | Category |
|---|---|---|
| 18231-W9800 | Bush | ﾁｮｰｸ & ｽﾛｯﾄﾙ ｺﾝﾄﾛｰﾙ (1994-02-01 ~ 1995-11-01; <0294-1096>; TD27T) |
| 18232-W9800 | Bush | ﾁｮｰｸ & ｽﾛｯﾄﾙ ｺﾝﾄﾛｰﾙ (1994-02-01 ~ 1995-11-01; <0294-1096>; TD27T) |
| 18450-0F425 | Wire Assy-Engine Control | ﾁｮｰｸ & ｽﾛｯﾄﾙ ｺﾝﾄﾛｰﾙ (1994-02-01 ~ 1995-11-01; <0294-1096>; TD27T) |
| 18465-0F000 | Knob-Throttle Control | ﾁｮｰｸ & ｽﾛｯﾄﾙ ｺﾝﾄﾛｰﾙ (1994-02-01 ~ 1995-11-01; <0294-1096>; TD27T) |
| 24220-20J00 | Clip-Wiring Harness | ﾁｮｰｸ & ｽﾛｯﾄﾙ ｺﾝﾄﾛｰﾙ (1994-02-01 ~ 1995-11-01; <0294-1096>; TD27T) |
| 24220-57J00 | Clamp-Hose, B | ﾁｮｰｸ & ｽﾛｯﾄﾙ ｺﾝﾄﾛｰﾙ (1994-02-01 ~ 1995-11-01; <0294-1096>; TD27T) |
| 25163-0F000 | Escutcheon | ﾁｮｰｸ & ｽﾛｯﾄﾙ ｺﾝﾄﾛｰﾙ (1994-02-01 ~ 1995-11-01; <0294-1096>; TD27T) |
