Search › Model › R11
R11

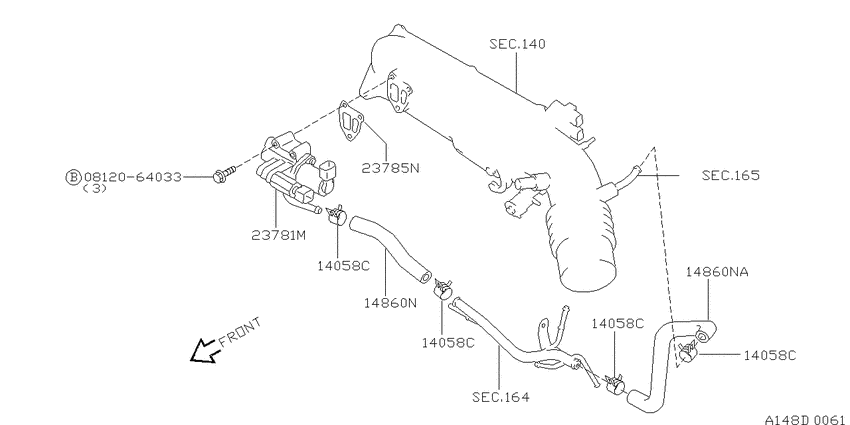

Secondary air system (1997-08-01 ~ ; SR18DE +SR20DE) 9
| # | OEM | Part name |
|---|---|---|
| 14058 | 16439-V5000 | Clamp-Hose A |
| 14860 | 14099-53J06 | Hose-Air |
| 14860 | 14099-2J201 | Hose-Air |
| 14860 | 14099-53J05 | Hose-Air |
| 23781 | 23781-2J215 | Iacv-Aac Valve |
| 23781 | 23781-2J220 | Iacv-Aac Valve |
| 23781 | 23781-33Y00 | Iacv-Aac Valve |
| 23781 | 23781-33Y10 | Iacv-Aac Valve |
| 812064033 | 08120-64033 | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08120-64033 | Bolt-hexagon | Secondary air system (1997-08-01 ~ ; SR18DE +SR20DE) |
| 14099-2J201 | Hose-Air | Secondary air system (1997-08-01 ~ ; SR18DE +SR20DE) |
| 14099-53J05 | Hose-Air | Secondary air system (1997-08-01 ~ ; SR18DE +SR20DE) |
| 14099-53J06 | Hose-Air | Secondary air system (1997-08-01 ~ ; SR18DE +SR20DE) |
| 16439-V5000 | Clamp-Hose A | Secondary air system (1997-08-01 ~ ; SR18DE +SR20DE) |
| 23781-2J215 | Iacv-Aac Valve | Secondary air system (1997-08-01 ~ ; SR18DE +SR20DE) |
| 23781-2J220 | Iacv-Aac Valve | Secondary air system (1997-08-01 ~ ; SR18DE +SR20DE) |
| 23781-33Y00 | Iacv-Aac Valve | Secondary air system (1997-08-01 ~ ; SR18DE +SR20DE) |
| 23781-33Y10 | Iacv-Aac Valve | Secondary air system (1997-08-01 ~ ; SR18DE +SR20DE) |
