Search › Model › R10
R10

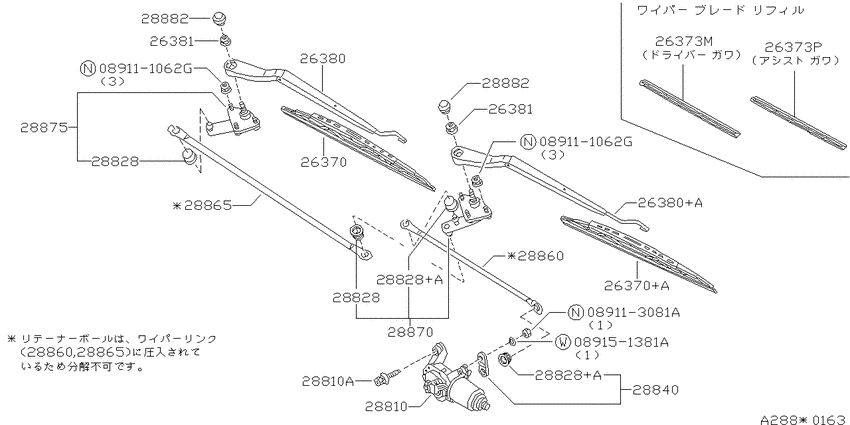

Windshield wiper (1992-06-01 ~ ; K) 11
| # | OEM | Part name |
|---|---|---|
| 26370 | 28890-F6105 | Blade Assy-Windshield Wiper |
| 26370 | 28890-01U05 | Blade Assy-Windshield Wiper |
| 26381 | 28889-50J00 | Nut-Wiper Arm |
| 28828 | 28828-51E02 | SEAL-BALL RETAINER |
| 28828 | 28828-51E00 | SEAL-BALL RETAINER |
| 28840 | 28825-50J00 | Arm Assy-Wiper Motor |
| 28860 | 28841-50Y00 | Link Assy-Connecting, No 1 |
| 28865 | 28842-50Y00 | Link Assy-Connecting, No 2 |
| 28870 | 28850-30Y00 | Pivot Assy-Wiper, No 1 |
| 28875 | 28860-30Y00 | Pivot Assy-Wiper, No 2 |
| 89113081 | 08911-3081A | Nut-Wiper Arm |
| OEM | Part name | Category |
|---|---|---|
| 08911-3081A | Nut-Wiper Arm | Windshield wiper (1992-06-01 ~ ; K) |
| 28825-50J00 | Arm Assy-Wiper Motor | Windshield wiper (1992-06-01 ~ ; K) |
| 28828-51E00 | SEAL-BALL RETAINER | Windshield wiper (1992-06-01 ~ ; K) |
| 28828-51E02 | SEAL-BALL RETAINER | Windshield wiper (1992-06-01 ~ ; K) |
| 28841-50Y00 | Link Assy-Connecting, No 1 | Windshield wiper (1992-06-01 ~ ; K) |
| 28842-50Y00 | Link Assy-Connecting, No 2 | Windshield wiper (1992-06-01 ~ ; K) |
| 28850-30Y00 | Pivot Assy-Wiper, No 1 | Windshield wiper (1992-06-01 ~ ; K) |
| 28860-30Y00 | Pivot Assy-Wiper, No 2 | Windshield wiper (1992-06-01 ~ ; K) |
| 28889-50J00 | Nut-Wiper Arm | Windshield wiper (1992-06-01 ~ ; K) |
| 28890-01U05 | Blade Assy-Windshield Wiper | Windshield wiper (1992-06-01 ~ ; K) |
| 28890-F6105 | Blade Assy-Windshield Wiper | Windshield wiper (1992-06-01 ~ ; K) |
