R10

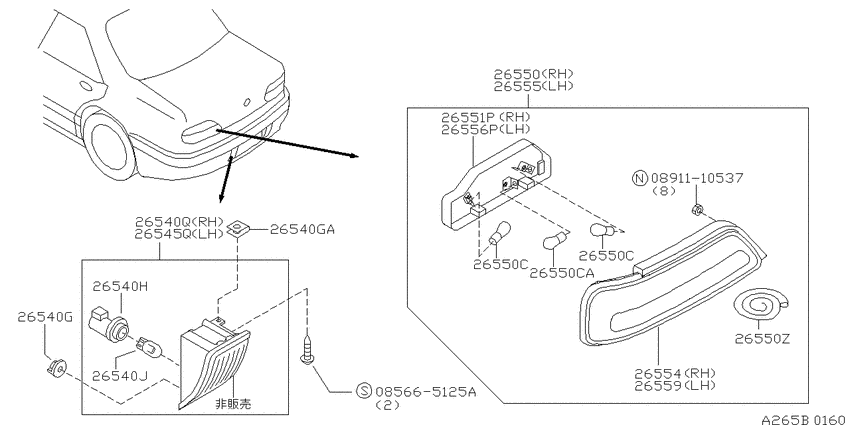

Rear combination lamp (1992-06-01 ~ ; K) 11
| # | OEM | Part name |
|---|---|---|
| 26540 | 26394-51L00 | Nut |
| 26540 | 01241-00621 | NUT |
| 26540 | 26254-30Y00 | Socket Assy |
| 26540 | 26540-30Y00 | Lamp Assy-Back Up, Rh |
| 26545 | 26545-30Y00 | Lamp Assy-Back Up, Lh |
| 26551 | 26551-30Y60 | Socket & Back Cover Assy, Rh |
| 26554 | 26554-30Y60 | Body Assy-Combination Lamp, Rh |
| 26554 | 26554-30Y61 | Body Assy-Combination Lamp, Rh |
| 26556 | 26556-30Y60 | Socket & Back Cover Assy, Lh |
| 26559 | 26559-30Y60 | Body Assy-Combination Lamp, Lh |
| 26559 | 26559-30Y61 | Body Assy-Combination Lamp, Lh |
| OEM | Part name | Category |
|---|---|---|
| 01241-00621 | NUT | Rear combination lamp (1992-06-01 ~ ; K) |
| 26254-30Y00 | Socket Assy | Rear combination lamp (1992-06-01 ~ ; K) |
| 26394-51L00 | Nut | Rear combination lamp (1992-06-01 ~ ; K) |
| 26540-30Y00 | Lamp Assy-Back Up, Rh | Rear combination lamp (1992-06-01 ~ ; K) |
| 26545-30Y00 | Lamp Assy-Back Up, Lh | Rear combination lamp (1992-06-01 ~ ; K) |
| 26551-30Y60 | Socket & Back Cover Assy, Rh | Rear combination lamp (1992-06-01 ~ ; K) |
| 26554-30Y60 | Body Assy-Combination Lamp, Rh | Rear combination lamp (1992-06-01 ~ ; K) |
| 26554-30Y61 | Body Assy-Combination Lamp, Rh | Rear combination lamp (1992-06-01 ~ ; K) |
| 26556-30Y60 | Socket & Back Cover Assy, Lh | Rear combination lamp (1992-06-01 ~ ; K) |
| 26559-30Y60 | Body Assy-Combination Lamp, Lh | Rear combination lamp (1992-06-01 ~ ; K) |
| 26559-30Y61 | Body Assy-Combination Lamp, Lh | Rear combination lamp (1992-06-01 ~ ; K) |
