| 01456-00451 |
SCREW |

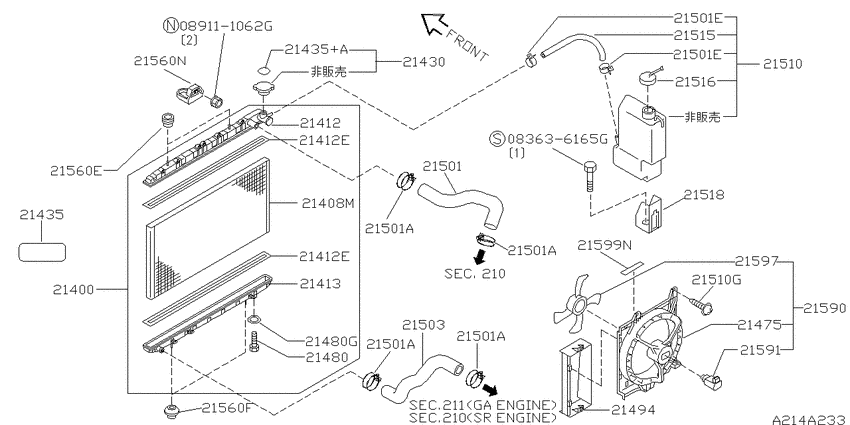

Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 01555-00291 |
CLAMP-HOSE |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21410-58Y01 |
Radiator Assy |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21411-57Y01 |
Core Assy-Radiator |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21412-58Y00 |
Tank-Radiator, Upper |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21430-7999C |
Cap Assy-Radiator |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21435-53J00 |
Label-Caution Water |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21435-89912 |
Label-Caution, Radiator |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21435-89960 |
Label-Caution, Radiator |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21481-58Y00 |
Motor & Fan Assy-With Shroud |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21481-58Y01 |
Motor & Fan Assy-With Shroud |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21481-58Y25 |
Motor & fan assy-with shroud |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21483-58Y00 |
Shroud Assy |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21486-58Y00 |
Fan-Motor |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21487-58Y00 |
Motor Assy-Fan |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21487-58Y01 |
Motor Assy-Fan |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21501-58Y00 |
Hose-Radiator, Upper |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21506-50Y00 |
Mounting Rubber-Radiator, Upper |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21507-50Y00 |
Mounting Rubber-Radiator, Lower |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21507-51Y10 |
Mounting Rubber-Radiator, Lower |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21543-50Y10 |
Bracket-Radiator Mounting, Upper |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21599-89900 |
Label-Caution, Motor Fan |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21599-89904 |
Label-Caution, Motor Fan |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21710-69Y10 |
Tank Assy-Reserve |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21710-69Y11 |
Tank Assy-Reserve |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
| 21741-50Y01 |
Hose-Reserve Tank |
Radiator, shroud & fitting (1992-06-01 ~ ; イラスト; GA15DS.MT +SR18DE.MT +SR20D.MT) |
