R10

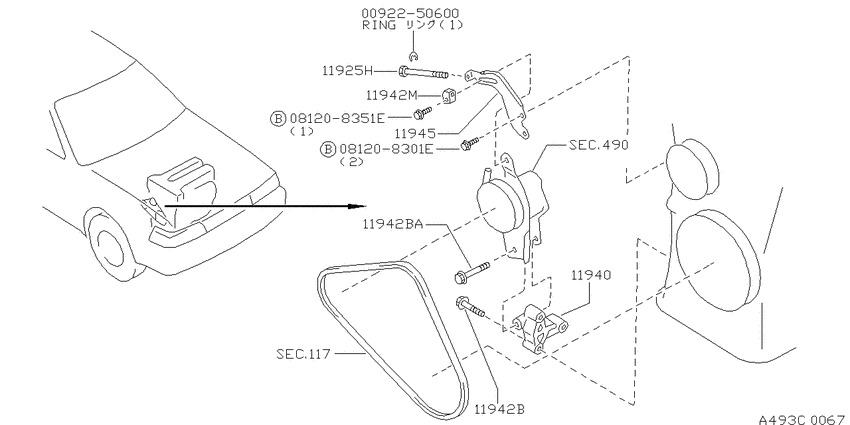

Power steering pump mounting (1992-06-01 ~ ; K.SR20D) 7
| # | OEM | Part name |
|---|---|---|
| 11925 | 11717-54A00 | Bolt |
| 11940 | 11940-53J00 | Bracket-Power Steering Oil Pump |
| 11940 | 11940-4E000 | Bracket-Power Steering Oil Pump |
| 11942 | 11916-53J00 | Bolt |
| 11945 | 11941-53J00 | Bar-Adjusting |
| 81208301 | 08120-8301E | Bolt-hexagon |
| 92250600 | 00922-50600 | リング,スナツプ |
| OEM | Part name | Category |
|---|---|---|
| 00922-50600 | リング,スナツプ | Power steering pump mounting (1992-06-01 ~ ; K.SR20D) |
| 08120-8301E | Bolt-hexagon | Power steering pump mounting (1992-06-01 ~ ; K.SR20D) |
| 11717-54A00 | Bolt | Power steering pump mounting (1992-06-01 ~ ; K.SR20D) |
| 11916-53J00 | Bolt | Power steering pump mounting (1992-06-01 ~ ; K.SR20D) |
| 11940-4E000 | Bracket-Power Steering Oil Pump | Power steering pump mounting (1992-06-01 ~ ; K.SR20D) |
| 11940-53J00 | Bracket-Power Steering Oil Pump | Power steering pump mounting (1992-06-01 ~ ; K.SR20D) |
| 11941-53J00 | Bar-Adjusting | Power steering pump mounting (1992-06-01 ~ ; K.SR20D) |
