Search › Model › R10
R10

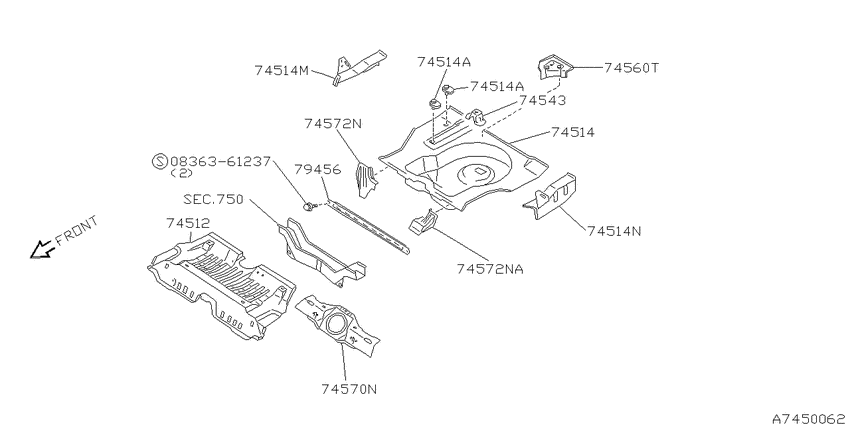

Floor panel (rear) (1992-06-01 ~ ; K) 12
| # | OEM | Part name |
|---|---|---|
| 74512 | 74512-50Y30 | Floor-Rear, Front |
| 74514 | 74514-50Y30 | Floor-Rear, Rear |
| 74514 | 74398-10V00 | Plate-Bolt |
| 74514 | 74530-30Y00 | フロア,リヤ リヤ サイド rh |
| 74514 | 74531-30Y00 | フロア,リヤ リヤ サイド lh |
| 74543 | 74588-0M000 | Bracket-Spare Tire Clamp |
| 74543 | 74588-50A00 | Bracket-Spare Tire Clamp |
| 74560 | 74560-50Y00 | Bracket-Muffler Mounting |
| 74570 | 74574-50Y00 | Reinforce-Anchor Belt, Rear Floor |
| 74572 | 74520-50Y00 | Support Assy-Rear Seat Back |
| 74572 | 74521-50Y00 | Support Assy-Rear Seat Back |
| 836361237 | 08363-61237 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08363-61237 | スクリユ-,マシン | Floor panel (rear) (1992-06-01 ~ ; K) |
| 74398-10V00 | Plate-Bolt | Floor panel (rear) (1992-06-01 ~ ; K) |
| 74512-50Y30 | Floor-Rear, Front | Floor panel (rear) (1992-06-01 ~ ; K) |
| 74514-50Y30 | Floor-Rear, Rear | Floor panel (rear) (1992-06-01 ~ ; K) |
| 74520-50Y00 | Support Assy-Rear Seat Back | Floor panel (rear) (1992-06-01 ~ ; K) |
| 74521-50Y00 | Support Assy-Rear Seat Back | Floor panel (rear) (1992-06-01 ~ ; K) |
| 74530-30Y00 | フロア,リヤ リヤ サイド rh | Floor panel (rear) (1992-06-01 ~ ; K) |
| 74531-30Y00 | フロア,リヤ リヤ サイド lh | Floor panel (rear) (1992-06-01 ~ ; K) |
| 74560-50Y00 | Bracket-Muffler Mounting | Floor panel (rear) (1992-06-01 ~ ; K) |
| 74574-50Y00 | Reinforce-Anchor Belt, Rear Floor | Floor panel (rear) (1992-06-01 ~ ; K) |
| 74588-0M000 | Bracket-Spare Tire Clamp | Floor panel (rear) (1992-06-01 ~ ; K) |
| 74588-50A00 | Bracket-Spare Tire Clamp | Floor panel (rear) (1992-06-01 ~ ; K) |
