R10

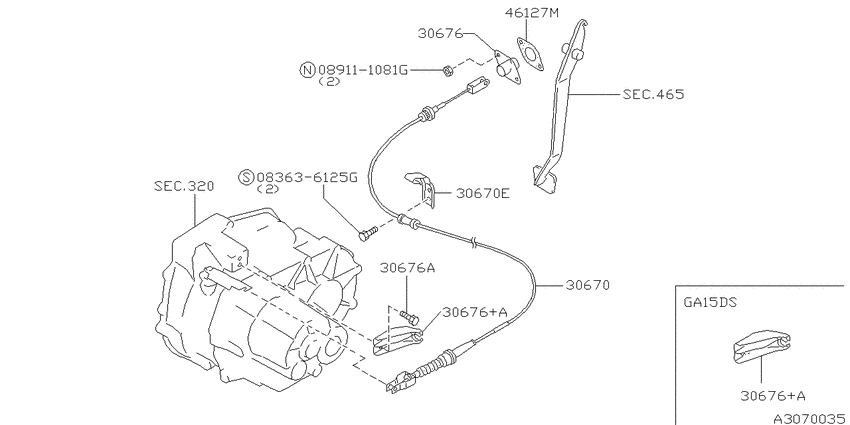

Clutch control (1992-06-01 ~ ; GA15DS +SR18DE +SR20D) 9
| # | OEM | Part name |
|---|---|---|
| 30670 | 30770-58Y01 | Cable Assy-Clutch Operating |
| 30670 | 30770-58Y10 | Cable Assy-Clutch Operating |
| 30670 | 30777-50Y00 | Clip |
| 30676 | 30776-50J10 | Bracket-Clutch Control |
| 30676 | 30776-51E00 | BRACKET-CLUTCH CONTROL |
| 30676 | 30676-58Y00 | Bracket-Clutch Control |
| 30676 | 01121-03901 | BOLT |
| 46127 | 46567-V5000 | Packing-Clutch Cable |
| 83636125 | 08363-6125G | Screw |
| OEM | Part name | Category |
|---|---|---|
| 01121-03901 | BOLT | Clutch control (1992-06-01 ~ ; GA15DS +SR18DE +SR20D) |
| 08363-6125G | Screw | Clutch control (1992-06-01 ~ ; GA15DS +SR18DE +SR20D) |
| 30676-58Y00 | Bracket-Clutch Control | Clutch control (1992-06-01 ~ ; GA15DS +SR18DE +SR20D) |
| 30770-58Y01 | Cable Assy-Clutch Operating | Clutch control (1992-06-01 ~ ; GA15DS +SR18DE +SR20D) |
| 30770-58Y10 | Cable Assy-Clutch Operating | Clutch control (1992-06-01 ~ ; GA15DS +SR18DE +SR20D) |
| 30776-50J10 | Bracket-Clutch Control | Clutch control (1992-06-01 ~ ; GA15DS +SR18DE +SR20D) |
| 30776-51E00 | BRACKET-CLUTCH CONTROL | Clutch control (1992-06-01 ~ ; GA15DS +SR18DE +SR20D) |
| 30777-50Y00 | Clip | Clutch control (1992-06-01 ~ ; GA15DS +SR18DE +SR20D) |
| 46567-V5000 | Packing-Clutch Cable | Clutch control (1992-06-01 ~ ; GA15DS +SR18DE +SR20D) |
