Search › Model › R10
R10

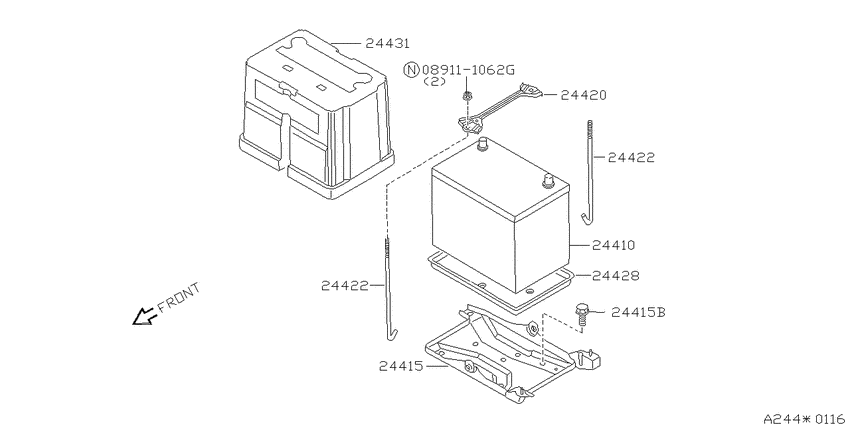

Battery & battery mounting (1992-06-01 ~ ; GA15DS +SR18DE +SR20D) 6
| # | OEM | Part name |
|---|---|---|
| 24410 | 24495-89900 | Label-Battery |
| 24415 | 64866-62J00 | Bracket-Battery |
| 24415 | 01121-01801 | BOLT |
| 24415 | 64866-50Y00 | Bracket-Battery |
| 24422 | 24425-89902 | Rod-Battery Fix |
| 24422 | 24425-89903 | Rod-Battery Fix |
| OEM | Part name | Category |
|---|---|---|
| 01121-01801 | BOLT | Battery & battery mounting (1992-06-01 ~ ; GA15DS +SR18DE +SR20D) |
| 24425-89902 | Rod-Battery Fix | Battery & battery mounting (1992-06-01 ~ ; GA15DS +SR18DE +SR20D) |
| 24425-89903 | Rod-Battery Fix | Battery & battery mounting (1992-06-01 ~ ; GA15DS +SR18DE +SR20D) |
| 24495-89900 | Label-Battery | Battery & battery mounting (1992-06-01 ~ ; GA15DS +SR18DE +SR20D) |
| 64866-50Y00 | Bracket-Battery | Battery & battery mounting (1992-06-01 ~ ; GA15DS +SR18DE +SR20D) |
| 64866-62J00 | Bracket-Battery | Battery & battery mounting (1992-06-01 ~ ; GA15DS +SR18DE +SR20D) |
