QNC25

Toyota BB · 2006 · 3,709 parts · 188 categories

3,709 items

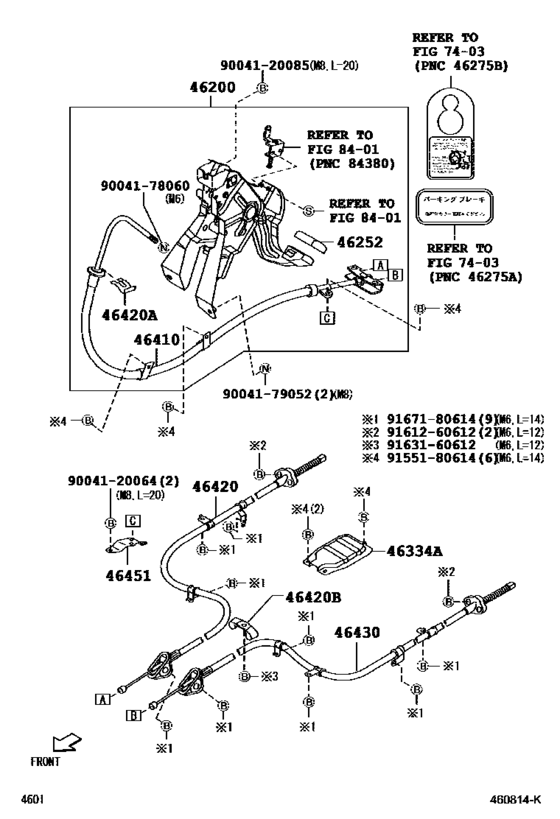

Parking Brake & Cable ([01.2006 - ] (0601- )) 24

#	OEM	Part name
46200	46200-B1010	Pedal Assy, Parking Brake Control
46200	46200-B1040	Pedal Assy, Parking Brake Control
46200	46200-B1011	Pedal Assy, Parking Brake Control
46200	46200-B1012	Pedal Assy, Parking Brake Control
46252	46252-B2010	Pad, Parking Pedal
46252	46252-B2020	Pad, Parking Pedal
46334	57889-B1010	Protector, Parking Brake Cable Joint
46410	46410-B1010	Cable Assy, Parking Brake, No.1
46410	46410-B1011	Cable Assy, Parking Brake, No.1
46420	46420-B1050	Cable Assy, Parking Brake, No.2
46420	90044-65531	Clamp, No.1(For Parking Brake Cable)
46420	90044-61845	Clamp, No.2(For Parking Brake Cable)
46430	46430-B1050	Cable Assy, Parking Brake, No.3
46451	58253-B1020	Bracket, Cable Support
9004120064	90041-20064	Bolt, W/washer
9004120085	90041-20085	Bolt(For Front Stabilizer)
9004178060	90041-78060	Nut, Parking Brake Cable Adjusting, No.2
9004179052	90041-79052	NUT
9155180614	91551-80614	Bolt(For Vacuum Transmitting Pipe)
9161260612	91612-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161260612	91611-G0612	Bolt
9163160612	91631-60612	New Genuine Part
9163160612	91631-J0612	BRACKET
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
46200-B1010	Pedal Assy, Parking Brake Control	Parking Brake & Cable ([01.2006 - ] (0601- ))
46200-B1011	Pedal Assy, Parking Brake Control	Parking Brake & Cable ([01.2006 - ] (0601- ))
46200-B1012	Pedal Assy, Parking Brake Control	Parking Brake & Cable ([01.2006 - ] (0601- ))
46200-B1040	Pedal Assy, Parking Brake Control	Parking Brake & Cable ([01.2006 - ] (0601- ))
46252-B2010	Pad, Parking Pedal	Parking Brake & Cable ([01.2006 - ] (0601- ))
46252-B2020	Pad, Parking Pedal	Parking Brake & Cable ([01.2006 - ] (0601- ))
46410-B1010	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([01.2006 - ] (0601- ))
46410-B1011	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([01.2006 - ] (0601- ))
46420-B1050	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([01.2006 - ] (0601- ))
46430-B1050	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([01.2006 - ] (0601- ))
57889-B1010	Protector, Parking Brake Cable Joint	Parking Brake & Cable ([01.2006 - ] (0601- ))
58253-B1020	Bracket, Cable Support	Parking Brake & Cable ([01.2006 - ] (0601- ))
90041-20064	Bolt, W/washer	Parking Brake & Cable ([01.2006 - ] (0601- ))
90041-20085	Bolt(For Front Stabilizer)	Parking Brake & Cable ([01.2006 - ] (0601- ))
90041-78060	Nut, Parking Brake Cable Adjusting, No.2	Parking Brake & Cable ([01.2006 - ] (0601- ))
90041-79052	NUT	Parking Brake & Cable ([01.2006 - ] (0601- ))
90044-61845	Clamp, No.2(For Parking Brake Cable)	Parking Brake & Cable ([01.2006 - ] (0601- ))
90044-65531	Clamp, No.1(For Parking Brake Cable)	Parking Brake & Cable ([01.2006 - ] (0601- ))
91551-80614	Bolt(For Vacuum Transmitting Pipe)	Parking Brake & Cable ([01.2006 - ] (0601- ))
91611-G0612	Bolt	Parking Brake & Cable ([01.2006 - ] (0601- ))
91612-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Parking Brake & Cable ([01.2006 - ] (0601- ))
91631-60612	New Genuine Part	Parking Brake & Cable ([01.2006 - ] (0601- ))
91631-J0612	BRACKET	Parking Brake & Cable ([01.2006 - ] (0601- ))
91671-80614	Bolt (For Transmission Control Cable Bracket)	Parking Brake & Cable ([01.2006 - ] (0601- ))
