Search › Model › QNC25

QNC25

Toyota BB · 2006 · 3,709 parts · 188 categories
QNC25 ×

← Back to categories

3,709 items

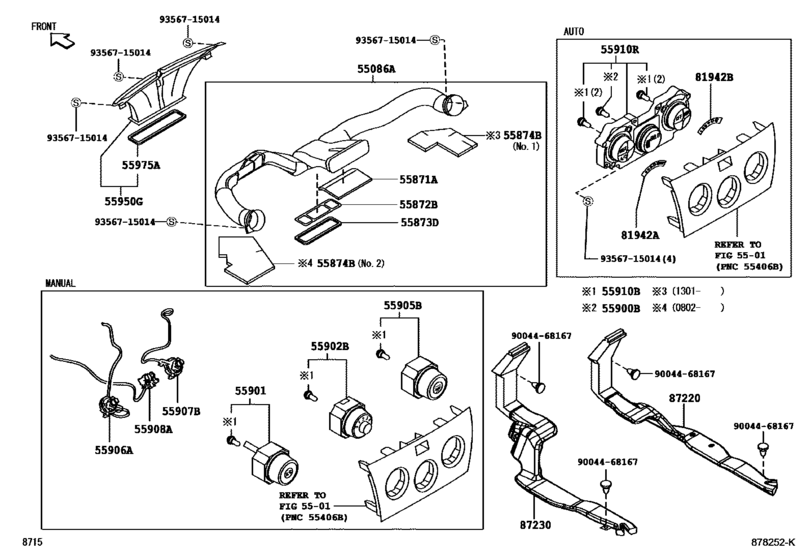

Heating & Air Conditioning - Control & Air Duct ([01.2006 - ] (0601- )) 28
#OEMPart name
55086 55086-B1040 Duct Sub-Assy, Heater To Register, Center
55871 55871-B1020 Seal, Air Duct, No.1
55872 55872-B1020 Seal, Air Duct,no.2
55873 55873-B1020 Seal, Air Duct, Center
55874 55874-B1010 Seal, Air Duct, No.4
55874 55875-B1020 Seal, Air Duct, No.4
55901 55901-B1010 Base Sub-Assy, Heater Control
55901 55901-B1060 Base Sub-Assy, Heater Control
55902 55902-B1050 Control Sub-Assy, Heater
55902 55902-B1120 Control Sub-Assy, Heater
55905 55903-B1010 Knob, Heater Control, No.2
55905 55903-B1050 Knob, Heater Control, No.2
55906 55906-52132 Cable Sub-Assy, Defroster Damper Control
55907 55909-52120 Cable Sub-Assy, Temperature Damper Control
55908 55908-52130 Cable Sub-Assy, Air Inlet Damper Control
55910 90010-01113 Bulb, Heater Control Sub-Assy, No.1
55910 55910-B1090 Control Assy, Heater
55910 55910-B1140 Control Assy, Heater
55950 55950-B1030 Nozzle Assy, Defroster
55975 55975-B1020 Seal, Defroster Nozzle, No.1
81942 81942-B1140 Sheet, Heater Control Name, No.1
81942 81942-B1150 Sheet, Heater Control Name, No.2
87220 87220-B1050 Duct Assy, Air
87230 87230-B1030 Duct Assy, Air, Heater
9004468167 90044-68167 Clip, Air Duct
9004468167 90044-68167-01 Clip, Air Duct
9356715014 93567-15014 Direct
9356715014 93568-55014 Screw
Source
Public OEM parts-catalog data
Variants
2 / 2
Category
188
Collected
2026-08-02
