QNC25

Toyota BB · 2006 · 3,709 parts · 188 categories
QNC25 ×

← Back to categories

3,709 items

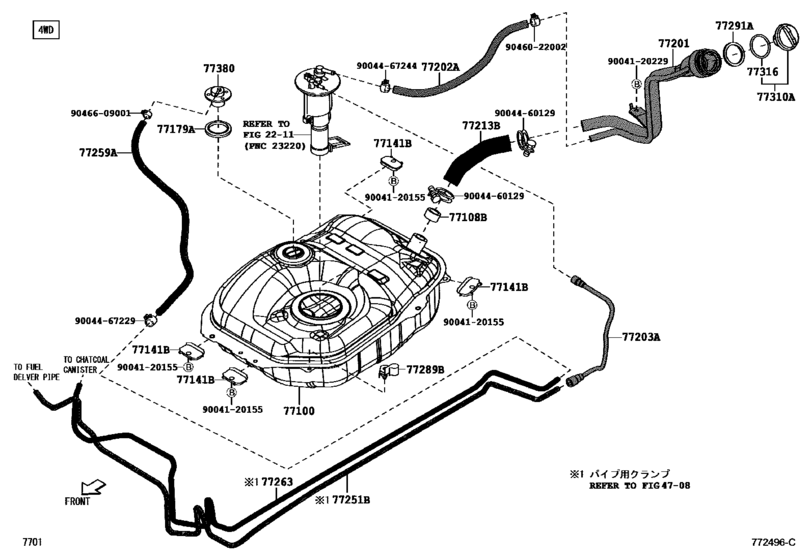

Fuel Tank & Tube ([01.2006 - 09.2014] FUEL TUNK (0601-1409)QNC25) 27
#OEMPart name
77100 77001-B1020 Tank Assy, Fuel
77100 77001-B1051 Tank Assy, Fuel
77100 77001-B1050 Tank Assy, Fuel
77108 77108-B2010 Valve Sub-Assy, Fuel Tank Filler Check
77141 77141-B1020 Plate, Fuel Tank Side
77179 77179-33010 Gasket, Fuel Tank Evap/vent Tube
77201 77201-B1080 Pipe Sub-Assy, Fuel Tank Inlet
77202 77269-B1020 Hose, Fuel, No.1 (For Breather Tube)
77203 77203-B1020 Tube Sub-Assy, Fuel Suction
77213 77213-B1020 Hose, Fuel Tank To Filler Pipe
77251 77251-B1030 Tube, Fuel Main
77259 77259-B2010 Hose, Fuel(For Breather Tube)
77263 77263-B1030 Tube, Fuel Tank To Canister, No.3
77289 77289-B2010 Clamp, Fuel Tube, No.3
77291 77291-B2020 Shield, Fuel Tank Filler Pipe
77310 77300-28010 Cap Assy, Fuel Tank
77310 77310-48010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77380 77380-B2010 Valve Assy, Fuel Cut Off
9004120155 90041-20155 New Genuine Part
9004120229 90041-20229 New Genuine Part
9004460129 90044-60129 Clamp Sub-Assy, Fuel Hose
9004467229 90044-67229 New Genuine Part
9004467244 90044-67244 Clamp Or Clip, Hose(For Water By-Pass Pipe)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046609001 90466-09001 Clip(For Fuel Vapor Feed Hose, No.1)
