QNC25

Toyota BB · 2006 · 3,709 parts · 188 categories
QNC25 ×

← Back to categories

3,709 items

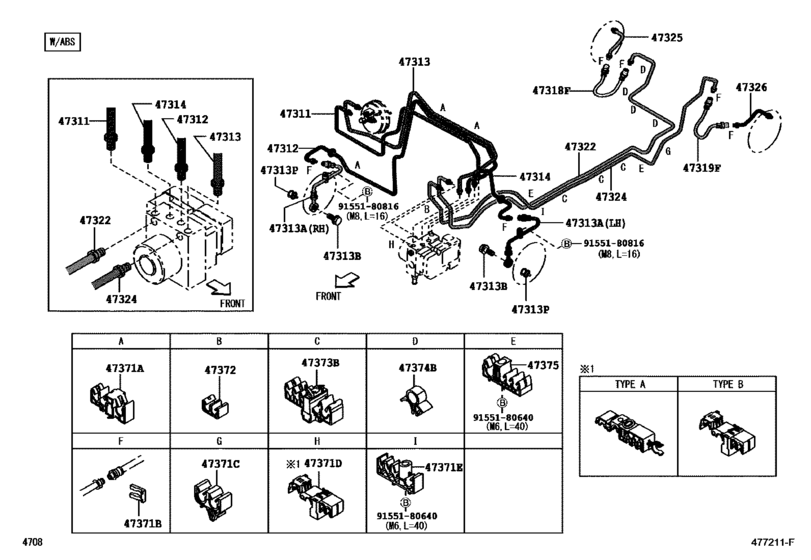

Brake Tube & Clamp ([01.2006 - ] W/ABS,W/VSC (0601- )) 29
#OEMPart name
47311 47311-B1060 Tube, Front Brake, No.1
47311 47311-B1230 Tube, Front Brake, No.1
47312 47312-B1010 Tube, Front Brake, No.2
47312 47312-B1150 Tube, Front Brake, No.2
47313 47313-B1060 Tube, Front Brake, No.3
47313 47313-B1230 Tube, Front Brake, No.3
47313 90049-22198 Hose, Flexible, No.1(For Front)
47313 90049-22199 Hose, Flexible, No.1(For Front)
47313 90044-01079 Bolt, Union(For Front Flexible Hose)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 47389-50020 Gasket(For Front Flexible Hose)
47313 47389-97201 Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47314 47314-B1010 Tube, Front Brake, No.4
47318 90049-22186 Hose, Flexible(For Rear Rh)
47322 47322-B1060 Tube, Rear Brake, No.2
47324 47324-B1060 Tube, Rear Brake, No.4
47325 47325-B1040 Tube, Rear Brake, No.5
47326 47326-B1040 Tube, Rear Brake, No.6
47371 90044-64781 Clamp, Front Drive Vacuum Tube, No.2
47371 90044-65441 Clamp, Brake Tube, No.6
47371 90044-64780 Clamp, Brake Tube, No.7
47371 90044-64754 Clamp, Brake Tube, No.8
47371 90044-64787 Clamp, Brake Tube, No.9
47372 90044-64731 Clamp, Brake Tube, No.2
47373 90044-64657 Clamp, Brake Tube, No.7
47374 90044-64659 Clamp, Brake Tube, No.1
47375 90044-64766 Clamp, Brake Tube, No.8
9155180640 91551-80640 New Genuine Part
9155180816 91551-80816 Bolt(For Manual Transmission Oil Separator)
