Search › Model › QNC21

QNC21

Toyota BB · 2006 · 3,595 parts · 183 categories

3,595 items

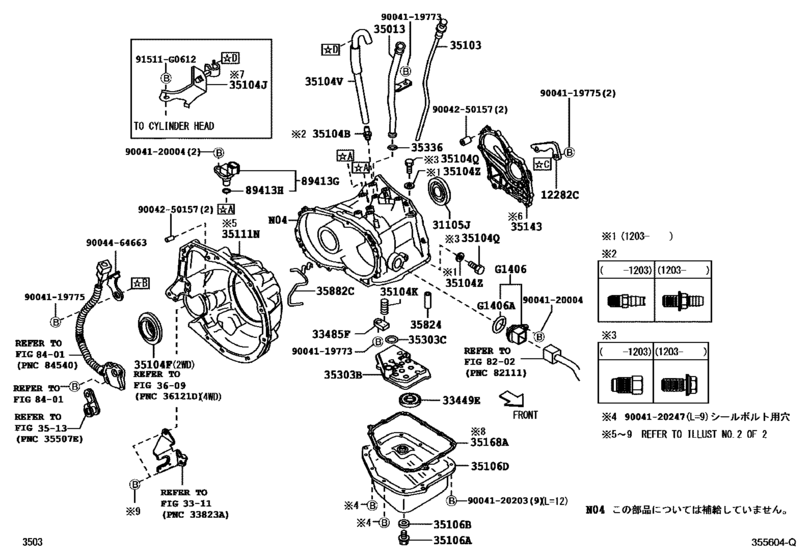

Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- )) 49

#	OEM	Part name
0	90043-01281	Ring, O(For Trans Solenoid Connector)
12282	12282-97206	Hanger, Engine, No.2
31105	90043-11316	Seal, Oil, No.2(For Transaxle Case)
33449	33449-87502	Magnet, Transmission
33449	33449-B2010	Magnet, Transaxle - OIL CLEANER (FOR TRANSMISSION)
33485	33485-87201	Plate, Speedometer Sleeve Lock (Mtm)
35013	35013-97207	Tube Sub-Assy, Transmission Oil Filler
35103	35103-97203	Gage Sub-Assy, Transmission Oil Level
35104	31477-B0010	Plug, Breather, No.1 (Atm)
35104	90049-15053	Plug, Breather, No.1 (Atm)
35104	90043-11317	Seal, Oil, No.1(For Front Transaxle Case)
35104	58107-B1020	Bracket, Breather Plug Hose
35104	58107-B1030	Bracket, Breather Plug Hose
35104	90045-01801	Compression Spring, Transaxle Case
35104	90041-05472	Plug, No.1 (For Transaxle Case)
35104	90043-45040	Plug, No.1 (For Transaxle Case)
35104	35121-B1010	Hose (For Breather Plug)
35104	90044-30330	Gasket (For Transaxle Case)
35106	90043-41041	Plug, Water Drain Cock(For Cylinder Block)
35106	90044-30281	Gasket(For Oil Pan Drain Plug)
35106	35106-B1010	Pan Sub-Assy, Automatic Transaxle Oil
35106	35106-B1011	Pan Sub-Assy, Automatic Transaxle Oil
35106	35168-B1030	Gasket, Automatic Transaxle Oil Pan
35106	90041-20203	Bolt (For Automatic Transmission Oil Pan)
35106	90041-20247	New Genuine Part
35111	35111-97203	Housing, Transaxle
35111	35111-B1030	Transaxle Housing (Atm)
35143	35181-97202	Cover Sub-Assy, Transaxle Rear
35168	35168-B1010	Gasket, Automatic Transaxle Oil Pan
35303	35303-97201	Strainer Sub-Assy, Oil
35303	90043-01364	Ring,o(For Oil Strainer)
35303	96721-24021	Ring, O(For Oil Pipe No.2)
35336	90043-01160	Ring, O(For Transmission Oil Filler Tube)
35824	35824-97201	Seal, Brake Cylinder
35882	35882-97201	Tube, Differential Gear Lube Apply
89413	89413-97202	Sensor, Transmission Revolution
89413	90043-01278	Ring, O
91511	91511-G0612	Bolt
9004119726	90041-19726	New Genuine Part
9004119773	90041-19773	New Genuine Part
9004119775	90041-19775	Bolt, W/washer
9004120004	90041-20004	New Genuine Part
9004120005	90041-20005	New Genuine Part
9004120022	90041-20022	New Genuine Part
9004250157	90042-50157	Pin, Straight(For Manual Transmission Case)
9004464663	90044-64663	New Genuine Part
9161261040	91612-61040	Bolt(For Transmission Case & Engine Setting)
9161961245	91619-61245	Bolt(For Transaxle & Engine Setting)
9161961265	91619-61265	Bolt(For Transaxle & Engine Setting)

OEM	Part name	Category
12282-97206	Hanger, Engine, No.2	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
31477-B0010	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
33449-87502	Magnet, Transmission	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
33449-B2010	Magnet, Transaxle - OIL CLEANER (FOR TRANSMISSION)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
33485-87201	Plate, Speedometer Sleeve Lock (Mtm)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
35013-97207	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
35103-97203	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
35106-B1010	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
35106-B1011	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
35111-97203	Housing, Transaxle	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
35111-B1030	Transaxle Housing (Atm)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
35121-B1010	Hose (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
35168-B1010	Gasket, Automatic Transaxle Oil Pan	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
35168-B1030	Gasket, Automatic Transaxle Oil Pan	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
35181-97202	Cover Sub-Assy, Transaxle Rear	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
35303-97201	Strainer Sub-Assy, Oil	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
35824-97201	Seal, Brake Cylinder	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
35882-97201	Tube, Differential Gear Lube Apply	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
58107-B1020	Bracket, Breather Plug Hose	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
58107-B1030	Bracket, Breather Plug Hose	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
89413-97202	Sensor, Transmission Revolution	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90041-05472	Plug, No.1 (For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90041-19726	New Genuine Part	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90041-19773	New Genuine Part	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90041-19775	Bolt, W/washer	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90041-20004	New Genuine Part	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90041-20005	New Genuine Part	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90041-20022	New Genuine Part	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90041-20203	Bolt (For Automatic Transmission Oil Pan)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90041-20247	New Genuine Part	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90042-50157	Pin, Straight(For Manual Transmission Case)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90043-01160	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90043-01278	Ring, O	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90043-01281	Ring, O(For Trans Solenoid Connector)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90043-01364	Ring,o(For Oil Strainer)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90043-11316	Seal, Oil, No.2(For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90043-11317	Seal, Oil, No.1(For Front Transaxle Case)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90043-41041	Plug, Water Drain Cock(For Cylinder Block)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90043-45040	Plug, No.1 (For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90044-30281	Gasket(For Oil Pan Drain Plug)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90044-30330	Gasket (For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90044-64663	New Genuine Part	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90045-01801	Compression Spring, Transaxle Case	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
90049-15053	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
91511-G0612	Bolt	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
91612-61040	Bolt(For Transmission Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
91619-61245	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
91619-61265	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
96721-24021	Ring, O(For Oil Pipe No.2)	Transmission Case & Oil Pan (Atm) ([01.2006 - ] (0601- ))
