QNC21

Toyota BB · 2006 · 3,595 parts · 183 categories

3,595 items

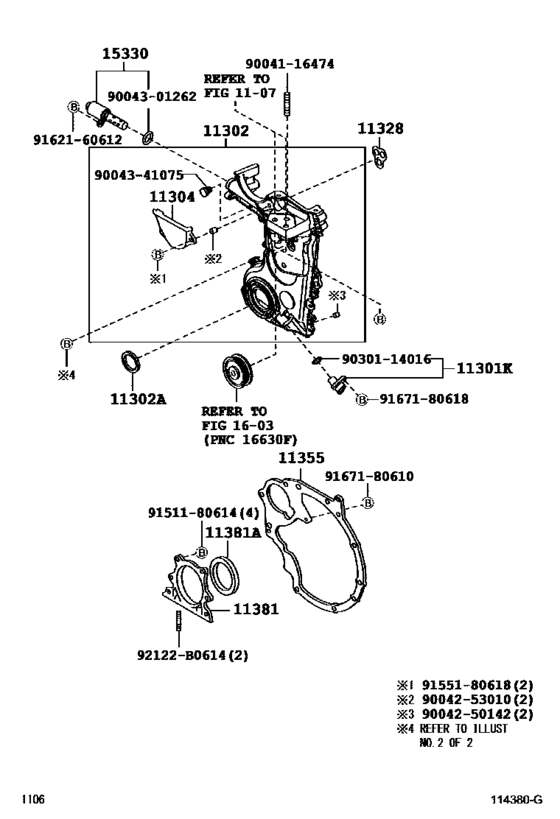

Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- )) 37

#	OEM	Part name
0	91551-E0835	New Genuine Part
0	91551-E0880	New Genuine Part
0	91552-E1025	New Genuine Part
0	91552-E1030	New Genuine Part
11301	19311-97401	Sensor, Crank Position
11302	11310-B1050	Cover Sub-Assy, Timing Chain Or Belt
11302	11310-B1051	Cover Sub-Assy, Timing Chain Or Belt
11302	90043-11428	Seal, Oil(For Timing Chain Or Belt Cover)
11302	90311-35040	Seal, Oil(For Timing Chain Or Belt Cover)
11304	11322-97401	Cover, Timing Chain Or Belt, No.2
11304	11322-B1010	Cover, Timing Chain Or Belt, No.2
11328	11328-97401	Gasket, Timing Belt Cover, No.1
11328	11328-B1010	Gasket, Timing Gear Or Chain Cover
11355	11355-97401	Plate, Rear End
11381	11381-97402	Retainer, Engine Rear Oil Seal
11381	90043-11364	Seal, Engine Rear Oil
11381	90043-11434	Seal, Engine Rear Oil
11381	90043-11402	Seal, Engine Rear Oil
15330	15330-97403	Valve Assy, Cam Timing Oil Control
15330	15330-B1030	Valve Assy, Cam Timing Oil Control
91551	91551-G0614	New Genuine Part
91551	91551-G0630	New Genuine Part
92122	92122-B0614	Bolt, Stud(For Oil Strainer)
9004105350	90041-05350	New Genuine Part
9004116474	90041-16474	New Genuine Part
9004178072	90041-78072	New Genuine Part
9004250142	90042-50142	Pin, Straight(For Timing Chain Cover)
9004253010	90042-53010	Pin, Ring(For Camshaft Bearing Cap Setting)
9004301262	90043-01262	Ring, O
9004341075	90043-41075	Plug, Straight(For Timing Gear Cover)
9030114016	90301-14016	O Ring, Cam Position Sensor
9151180614	91511-80614	BOLT FLANGE
9155180618	91551-80618	Bolt, W/washer(For Repair Actuator Set)
9162160612	91621-60612	BOLTWWASHER
9162160612	91621-J0612	BOLT W-WASHER
9167180610	91671-80610	New Genuine Part
9167180618	91671-80618	BOLT FLANGE WWSHER

OEM	Part name	Category
11310-B1050	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
11310-B1051	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
11322-97401	Cover, Timing Chain Or Belt, No.2	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
11322-B1010	Cover, Timing Chain Or Belt, No.2	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
11328-97401	Gasket, Timing Belt Cover, No.1	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
11328-B1010	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
11355-97401	Plate, Rear End	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
11381-97402	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
15330-97403	Valve Assy, Cam Timing Oil Control	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
15330-B1030	Valve Assy, Cam Timing Oil Control	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
19311-97401	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
90041-05350	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
90041-16474	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
90041-78072	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
90042-50142	Pin, Straight(For Timing Chain Cover)	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
90042-53010	Pin, Ring(For Camshaft Bearing Cap Setting)	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
90043-01262	Ring, O	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
90043-11364	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
90043-11402	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
90043-11428	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
90043-11434	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
90043-41075	Plug, Straight(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
90301-14016	O Ring, Cam Position Sensor	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
90311-35040	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
91511-80614	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
91551-80618	Bolt, W/washer(For Repair Actuator Set)	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
91551-E0835	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
91551-E0880	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
91551-G0614	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
91551-G0630	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
91552-E1025	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
91552-E1030	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
91621-60612	BOLTWWASHER	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
91621-J0612	BOLT W-WASHER	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
91671-80610	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
91671-80618	BOLT FLANGE WWSHER	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
92122-B0614	Bolt, Stud(For Oil Strainer)	Timing Gear Cover & Rear End Plate ([01.2006 - ] (0601- ))
