Search › Model › QNC21
QNC21

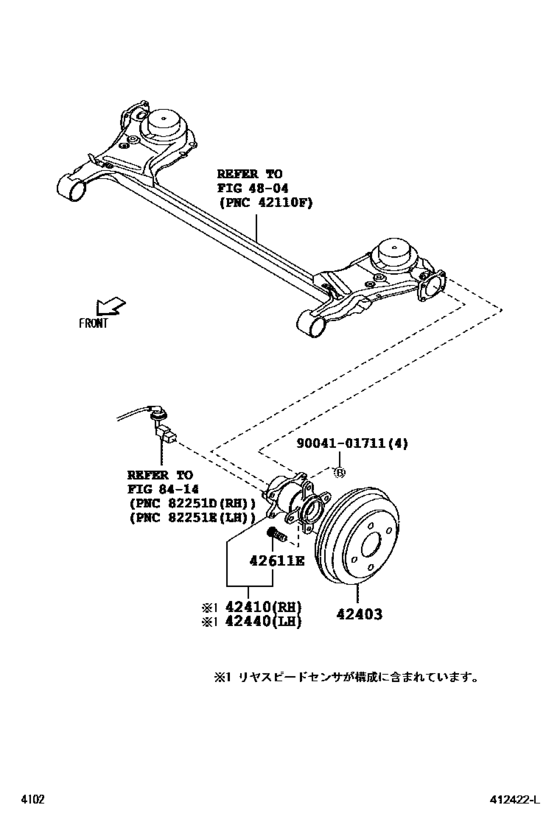

Rear Axle Shaft & Hub ([01.2006 - ] (0601- )QNC20,21) 5
| # | OEM | Part name |
|---|---|---|
| 42403 | 42431-B1020 | Drum Sub-Assy, Rear Brake |
| 42403 | 42431-B1021 | Drum Sub-Assy, Rear Brake |
| 42410 | 42410-B1030 | Hub & Bearing Assy, Rear Axle, Rh |
| 42611 | 90049-12062 | Bolt, Hub (For Rear Axle Rh) |
| 9004101711 | 90041-01711 | Bolt (For Rear Axle Bearing Rh) |
| OEM | Part name | Category |
|---|---|---|
| 42410-B1030 | Hub & Bearing Assy, Rear Axle, Rh | Rear Axle Shaft & Hub ([01.2006 - ] (0601- )QNC20,21) |
| 42431-B1020 | Drum Sub-Assy, Rear Brake | Rear Axle Shaft & Hub ([01.2006 - ] (0601- )QNC20,21) |
| 42431-B1021 | Drum Sub-Assy, Rear Brake | Rear Axle Shaft & Hub ([01.2006 - ] (0601- )QNC20,21) |
| 90041-01711 | Bolt (For Rear Axle Bearing Rh) | Rear Axle Shaft & Hub ([01.2006 - ] (0601- )QNC20,21) |
| 90049-12062 | Bolt, Hub (For Rear Axle Rh) | Rear Axle Shaft & Hub ([01.2006 - ] (0601- )QNC20,21) |
