Search › Model › QNC20

QNC20

Toyota BB · 2006 · 3,565 parts · 182 categories

3,565 items

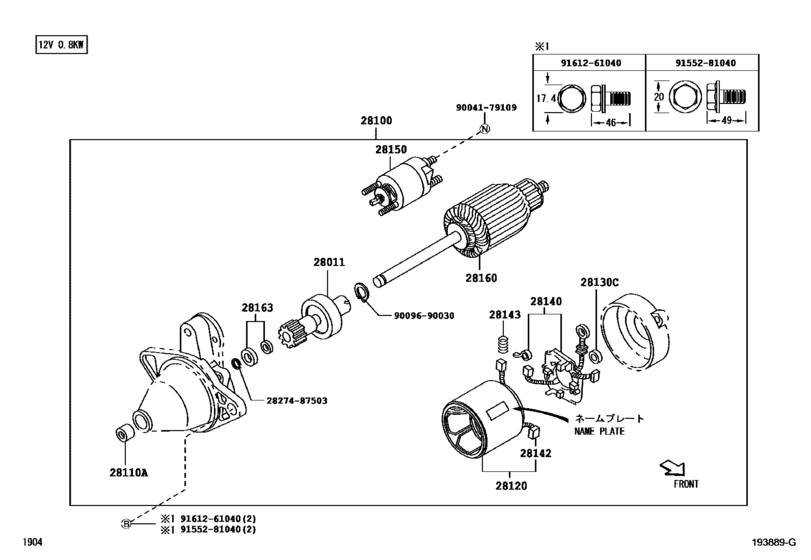

Starter ([09.2008 - ] 0.8KW (0809- )) 29

#	OEM	Part name
28011	28011-87101	Clutch Sub-Assy, Starter
28011	28011-87509	Clutch Sub-Assy, Starter
28100	28100-97214	Starter Assy
28100	28100-B1060	Starter Assy
28110	28277-87201	Bearing(For Starter Housing)
28120	28120-87401	Yoke Assy, Starter
28120	28120-87507	Yoke Assy, Starter
28120	28120-97502	Yoke Assy, Starter
28130	28253-87201	Bearing, Starter Flange
28130	90099-10183	Bearing, Starter Flange
28130	28271-87502	Bearing(For Starter Housing)
28140	28140-87202	Holder Assy, Starter Brush
28140	28149-87501	Holder Assy, Starter Brush
28142	28142-87204	Brush, Starter
28142	28142-87504	Brush, Starter
28143	28143-10020	Spring, Starter Brush
28143	28143-87202	Spring, Starter Brush
28150	28150-87208	Switch Assy, Magnet Starter
28150	28150-87536	Switch Assy, Magnet Starter
28160	28160-10020	Armature Assy, Starter
28160	28160-87207	Armature Assy, Starter
28160	28160-87208	Armature Assy, Starter
28163	28142-87505	Nut Or Collar, Pinion Stop, Starter
28163	28163-87202	Nut Or Collar, Pinion Stop, Starter
2827487503	28274-87503	Ring, Snap(For Starter Pinion Stop Nut)
9004179109	90041-79109	New Genuine Part
9009690030	90096-90030	Ring, Snap, Starter Clutch Housing Disc
9155281040	91552-81040	Bolt(For Alternator)
9161261040	91612-61040	Bolt(For Transmission Case & Engine Setting)

OEM	Part name	Category
28011-87101	Clutch Sub-Assy, Starter	Starter ([09.2008 - ] 0.8KW (0809- ))
28011-87509	Clutch Sub-Assy, Starter	Starter ([09.2008 - ] 0.8KW (0809- ))
28100-97214	Starter Assy	Starter ([09.2008 - ] 0.8KW (0809- ))
28100-B1060	Starter Assy	Starter ([09.2008 - ] 0.8KW (0809- ))
28120-87401	Yoke Assy, Starter	Starter ([09.2008 - ] 0.8KW (0809- ))
28120-87507	Yoke Assy, Starter	Starter ([09.2008 - ] 0.8KW (0809- ))
28120-97502	Yoke Assy, Starter	Starter ([09.2008 - ] 0.8KW (0809- ))
28140-87202	Holder Assy, Starter Brush	Starter ([09.2008 - ] 0.8KW (0809- ))
28142-87204	Brush, Starter	Starter ([09.2008 - ] 0.8KW (0809- ))
28142-87504	Brush, Starter	Starter ([09.2008 - ] 0.8KW (0809- ))
28142-87505	Nut Or Collar, Pinion Stop, Starter	Starter ([09.2008 - ] 0.8KW (0809- ))
28143-10020	Spring, Starter Brush	Starter ([09.2008 - ] 0.8KW (0809- ))
28143-87202	Spring, Starter Brush	Starter ([09.2008 - ] 0.8KW (0809- ))
28149-87501	Holder Assy, Starter Brush	Starter ([09.2008 - ] 0.8KW (0809- ))
28150-87208	Switch Assy, Magnet Starter	Starter ([09.2008 - ] 0.8KW (0809- ))
28150-87536	Switch Assy, Magnet Starter	Starter ([09.2008 - ] 0.8KW (0809- ))
28160-10020	Armature Assy, Starter	Starter ([09.2008 - ] 0.8KW (0809- ))
28160-87207	Armature Assy, Starter	Starter ([09.2008 - ] 0.8KW (0809- ))
28160-87208	Armature Assy, Starter	Starter ([09.2008 - ] 0.8KW (0809- ))
28163-87202	Nut Or Collar, Pinion Stop, Starter	Starter ([09.2008 - ] 0.8KW (0809- ))
28253-87201	Bearing, Starter Flange	Starter ([09.2008 - ] 0.8KW (0809- ))
28271-87502	Bearing(For Starter Housing)	Starter ([09.2008 - ] 0.8KW (0809- ))
28274-87503	Ring, Snap(For Starter Pinion Stop Nut)	Starter ([09.2008 - ] 0.8KW (0809- ))
28277-87201	Bearing(For Starter Housing)	Starter ([09.2008 - ] 0.8KW (0809- ))
90041-79109	New Genuine Part	Starter ([09.2008 - ] 0.8KW (0809- ))
90096-90030	Ring, Snap, Starter Clutch Housing Disc	Starter ([09.2008 - ] 0.8KW (0809- ))
90099-10183	Bearing, Starter Flange	Starter ([09.2008 - ] 0.8KW (0809- ))
91552-81040	Bolt(For Alternator)	Starter ([09.2008 - ] 0.8KW (0809- ))
91612-61040	Bolt(For Transmission Case & Engine Setting)	Starter ([09.2008 - ] 0.8KW (0809- ))
