Search › Model › QNC20

QNC20

Toyota BB · 2006 · 3,565 parts · 182 categories

3,565 items

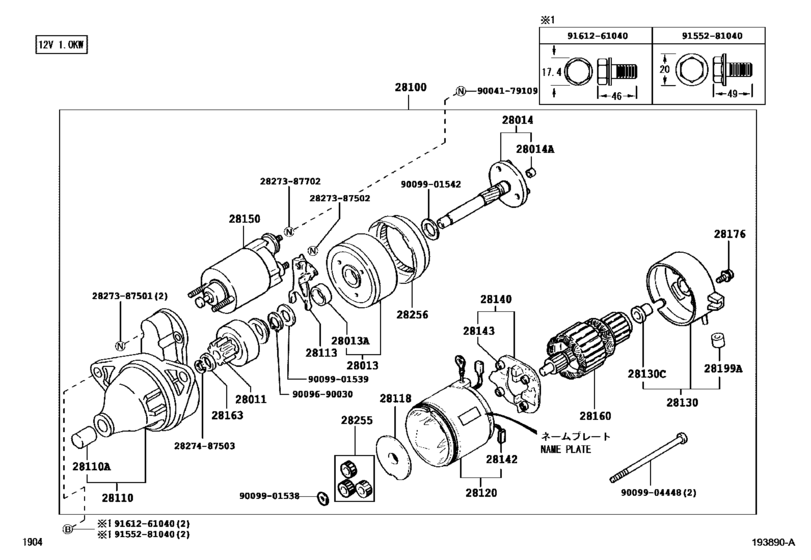

Starter ([01.2006 - 09.2008] 1.0KW (0601-0809)) 51

#	OEM	Part name
28011	28011-87101	Clutch Sub-Assy, Starter
28011	28011-87509	Clutch Sub-Assy, Starter
28013	28126-87201	Bearing, Starter Center & Shock Absorber, No.1
28013	90099-10181	Bearing, Starter Center & Shock Absorber, No.2
28014	28209-87201	Shaft Sub-Assy, Planet Carrier
28014	90099-10180	Bush Or Bearing, Planet Carrier Shaft
28100	28100-97214	Starter Assy
28100	28100-B1060	Starter Assy
28110	28110-97208	Housing Assy, Starter Drive
28110	28110-97209	Housing Assy, Starter Drive
28110	28277-87201	Bearing(For Starter Housing)
28113	28113-87204	Lever, Starter Pinion Drive
28113	28113-87503	Lever, Starter Pinion Drive
28118	28118-87201	Plate(For Starter Yoke)
28120	28120-87401	Yoke Assy, Starter
28120	28120-87507	Yoke Assy, Starter
28120	28120-97502	Yoke Assy, Starter
28130	28133-97205	Frame Assy, Starter Commutator End
28130	28133-97501	Frame Assy, Starter Commutator End
28130	28253-87201	Bearing, Starter Flange
28130	90099-10183	Bearing, Starter Flange
28130	28271-87502	Bearing(For Starter Housing)
28140	28140-87202	Holder Assy, Starter Brush
28140	28149-87501	Holder Assy, Starter Brush
28142	28142-87204	Brush, Starter
28142	28142-87504	Brush, Starter
28143	28143-10020	Spring, Starter Brush
28143	28143-87202	Spring, Starter Brush
28150	28150-87208	Switch Assy, Magnet Starter
28150	28150-87536	Switch Assy, Magnet Starter
28160	28160-10020	Armature Assy, Starter
28160	28160-87207	Armature Assy, Starter
28160	28160-87208	Armature Assy, Starter
28163	28142-87505	Nut Or Collar, Pinion Stop, Starter
28163	28163-87202	Nut Or Collar, Pinion Stop, Starter
28176	28176-87201	Screw, Starter
28199	28199-87505	Protector, Dust Starter
28255	28185-87201	Gear, Planet
28256	28184-87201	Gear, Starter Internal
2827387501	28273-87501	New Genuine Part
2827387502	28273-87502	New Genuine Part
2827387702	28273-87702	New Genuine Part
2827487503	28274-87503	Ring, Snap(For Starter Pinion Stop Nut)
9004179109	90041-79109	New Genuine Part
9009690030	90096-90030	Ring, Snap, Starter Clutch Housing Disc
9009901538	90099-01538	New Genuine Part
9009901539	90099-01539	New Genuine Part
9009901542	90099-01542	New Genuine Part
9009904448	90099-04448	Bolt, Starter
9155281040	91552-81040	Bolt(For Alternator)
9161261040	91612-61040	Bolt(For Transmission Case & Engine Setting)

OEM	Part name	Category
28011-87101	Clutch Sub-Assy, Starter	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28011-87509	Clutch Sub-Assy, Starter	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28100-97214	Starter Assy	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28100-B1060	Starter Assy	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28110-97208	Housing Assy, Starter Drive	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28110-97209	Housing Assy, Starter Drive	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28113-87204	Lever, Starter Pinion Drive	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28113-87503	Lever, Starter Pinion Drive	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28118-87201	Plate(For Starter Yoke)	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28120-87401	Yoke Assy, Starter	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28120-87507	Yoke Assy, Starter	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28120-97502	Yoke Assy, Starter	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28126-87201	Bearing, Starter Center & Shock Absorber, No.1	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28133-97205	Frame Assy, Starter Commutator End	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28133-97501	Frame Assy, Starter Commutator End	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28140-87202	Holder Assy, Starter Brush	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28142-87204	Brush, Starter	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28142-87504	Brush, Starter	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28142-87505	Nut Or Collar, Pinion Stop, Starter	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28143-10020	Spring, Starter Brush	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28143-87202	Spring, Starter Brush	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28149-87501	Holder Assy, Starter Brush	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28150-87208	Switch Assy, Magnet Starter	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28150-87536	Switch Assy, Magnet Starter	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28160-10020	Armature Assy, Starter	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28160-87207	Armature Assy, Starter	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28160-87208	Armature Assy, Starter	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28163-87202	Nut Or Collar, Pinion Stop, Starter	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28176-87201	Screw, Starter	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28184-87201	Gear, Starter Internal	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28185-87201	Gear, Planet	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28199-87505	Protector, Dust Starter	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28209-87201	Shaft Sub-Assy, Planet Carrier	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28253-87201	Bearing, Starter Flange	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28271-87502	Bearing(For Starter Housing)	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28273-87501	New Genuine Part	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28273-87502	New Genuine Part	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28273-87702	New Genuine Part	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28274-87503	Ring, Snap(For Starter Pinion Stop Nut)	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
28277-87201	Bearing(For Starter Housing)	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
90041-79109	New Genuine Part	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
90096-90030	Ring, Snap, Starter Clutch Housing Disc	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
90099-01538	New Genuine Part	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
90099-01539	New Genuine Part	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
90099-01542	New Genuine Part	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
90099-04448	Bolt, Starter	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
90099-10180	Bush Or Bearing, Planet Carrier Shaft	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
90099-10181	Bearing, Starter Center & Shock Absorber, No.2	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
90099-10183	Bearing, Starter Flange	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
91552-81040	Bolt(For Alternator)	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))
91612-61040	Bolt(For Transmission Case & Engine Setting)	Starter ([01.2006 - 09.2008] 1.0KW (0601-0809))

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 182
Collected: 2026-08-02
