QNC20

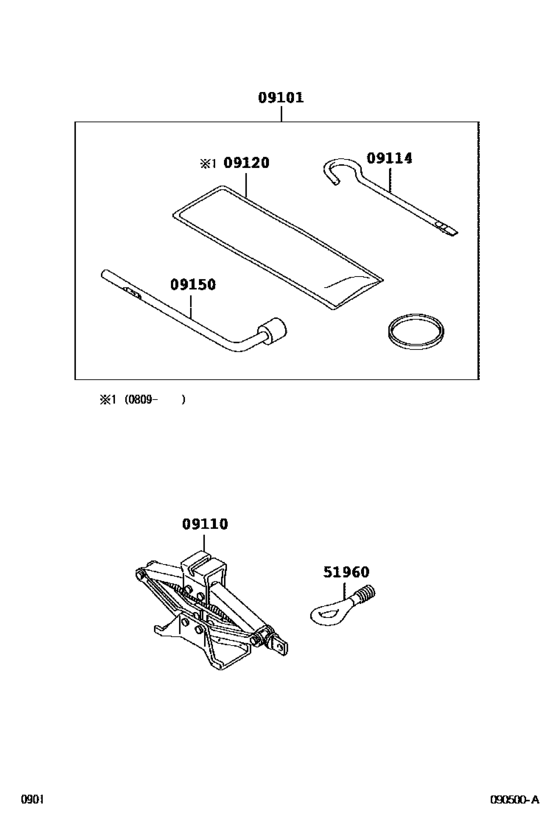

Standard Tool ([01.2006 - ] (0601- )) 10
| # | OEM | Part name |
|---|---|---|
| 9101 | 09101-B1010 | Tool Set, Standard W/o Jack |
| 9101 | 09101-B2060 | Tool Set, Standard W/o Jack |
| 9110 | 09111-B1040 | Jack Assy |
| 9114 | 09114-B1010 | Extension Sub-Assy, Jack Handle |
| 9120 | 09120-B2040 | Bag, Tool |
| 9150 | 09151-B1010 | Wrench, Hub Nut Box |
| 51960 | 51961-B1020 | Hook Assy, Front |
| 51960 | 51961-B1021 | Hook Assy, Front |
| 51960 | 51961-B1040 | Hook Assy, Front |
| 51960 | 51961-B2080 | Hook Assy, Front |
| OEM | Part name | Category |
|---|---|---|
| 09101-B1010 | Tool Set, Standard W/o Jack | Standard Tool ([01.2006 - ] (0601- )) |
| 09101-B2060 | Tool Set, Standard W/o Jack | Standard Tool ([01.2006 - ] (0601- )) |
| 09111-B1040 | Jack Assy | Standard Tool ([01.2006 - ] (0601- )) |
| 09114-B1010 | Extension Sub-Assy, Jack Handle | Standard Tool ([01.2006 - ] (0601- )) |
| 09120-B2040 | Bag, Tool | Standard Tool ([01.2006 - ] (0601- )) |
| 09151-B1010 | Wrench, Hub Nut Box | Standard Tool ([01.2006 - ] (0601- )) |
| 51961-B1020 | Hook Assy, Front | Standard Tool ([01.2006 - ] (0601- )) |
| 51961-B1021 | Hook Assy, Front | Standard Tool ([01.2006 - ] (0601- )) |
| 51961-B1040 | Hook Assy, Front | Standard Tool ([01.2006 - ] (0601- )) |
| 51961-B2080 | Hook Assy, Front | Standard Tool ([01.2006 - ] (0601- )) |
